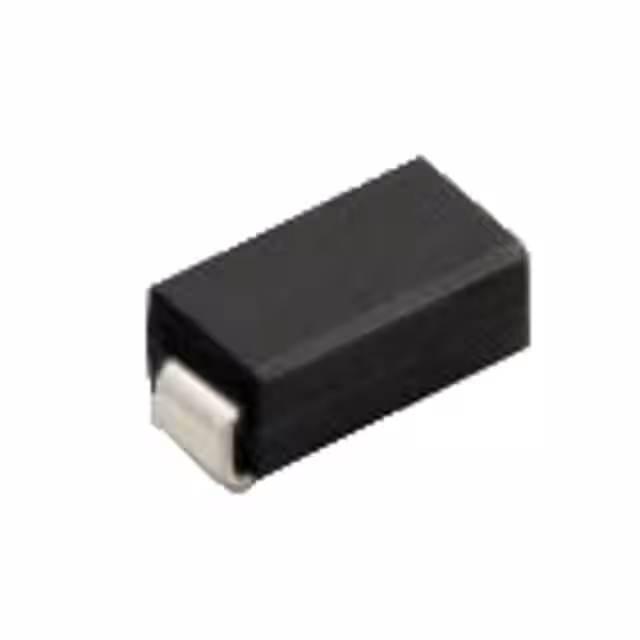

SMAJ100A

Manufacturer :

Rectron USA

Product Category :

Type :

Zener

Breakdown Voltage :

111V

Height :

2.29mm

Package / Case :

DO-214AC, SMA

Peak Pulse Current :

2.5A

Clamping Voltage :

162V

Number of Pins :

2

Operating Supply Voltage :

100V

Voltage - Rated DC :

100V

Number of Unidirectional Channels :

1

Factory Lead Time :

18 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

5.28mm

Width :

2.79mm

Published :

2009

Number of Elements :

1

Packaging :

Tape and Reel (TR)

Termination :

SMD/SMT

Composition :

Zener

Max Breakdown Voltage :

123V

Unidirectional Channels :

1

Power Line Protection :

No

Reverse Breakdown Voltage :

111V

Min Operating Temperature :

-55°C

Leakage Current :

1μA

Lead Free :

Lead Free

Reverse Standoff Voltage :

100V

Max Surge Current :

2.5A

Series :

SMAJ

Power - Peak Pulse :

400W

Test Current :

1mA

Voltage - Clamping (Max) @ Ipp :

162V

Direction :

Unidirectional

Operating Temperature :

-65°C~150°C TJ

Max Power Dissipation :

3.3W

Supplier Device Package :

DO-214AC (SMA)

Max Operating Temperature :

150°C

Current - Peak Pulse (10/1000μs) :

2.5A

Power Rating :

400W

Polarity :

Unidirectional

REACH SVHC :

No SVHC

RoHS Status :

ROHS3 Compliant

Number of Channels :

1

Peak Pulse Power :

400W

Mounting Type :

Surface Mount

Mount :

Surface Mount

Applications :

GENERAL PURPOSE

Voltage - Reverse Standoff (Typ) :

100V

Power Dissipation :

400W

Voltage - Breakdown (Min) :

111V
