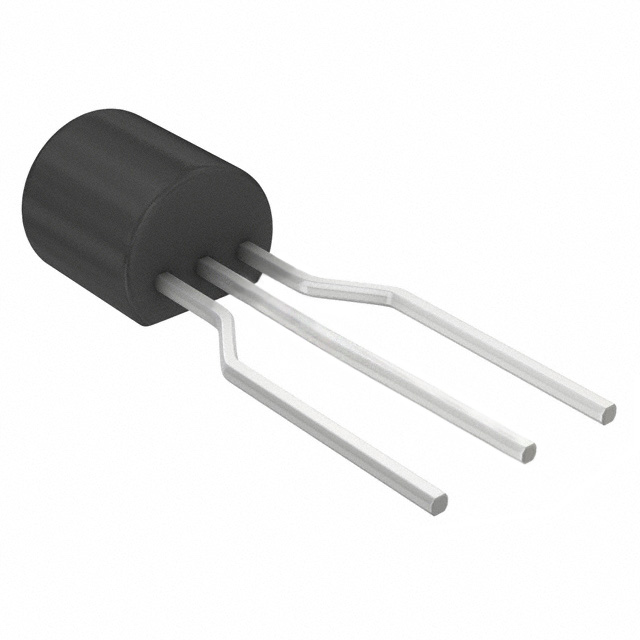

SS8550-C-AP
Or copy the link below:
- Mfr.Part #
- SS8550-C-AP
- Manufacturer
- Micro Commercial Components (MCC)
- Package / Case
- TO-226-3, TO-92-3 (TO-226AA) Formed Leads
- Datasheet
- Download
- Description
- TRANS PNP 25V 1.5A TO92
- Stock
- 21,468
- In Stock ：
- 21,468
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Micro Commercial Components (MCC)
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Transistor Element Material :
- SILICON
- Operating Temperature :
- -55°C~150°C TJ
- Pbfree Code :
- yes
- Qualification Status :
- Not Qualified
- Terminal Position :
- BOTTOM
- Number of Terminations :
- 3
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 120 @ 100mA 1V
- Frequency - Transition :
- 190MHz
- Package / Case :
- TO-226-3, TO-92-3 (TO-226AA) Formed Leads
- JESD-609 Code :
- e3
- Vce Saturation (Max) @ Ib, Ic :
- 800mV @ 80mA, 800mA
- Power - Max :
- 1W
- Current - Collector (Ic) (Max) :
- 1.5A
- Transition Frequency :
- 190MHz
- Surface Mount :
- No
- Transistor Type :
- PNP
- Current - Collector Cutoff (Max) :
- 100nA
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Pin Count :
- 3
- Polarity/Channel Type :
- PNP
- JESD-30 Code :
- O-PBCY-T3
- Number of Elements :
- 1
- Configuration :
- Single
- Mounting Type :
- Through Hole
- ECCN Code :
- EAR99
- Terminal Finish :
- Matte Tin (Sn)
- Voltage - Collector Emitter Breakdown (Max) :
- 25V
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- SS8550-C-AP
PNP -55°C~150°C TJ 100nA 1 Elements 3 Terminations SILICON PNP TO-226-3, TO-92-3 (TO-226AA) Formed Leads Through Hole
SS8550-C-AP Overview
This device has a DC current gain of 120 @ 100mA 1V, which is the ratio between the base current and the collector current.A VCE saturation (Max) of 800mV @ 80mA, 800mA means Ic has reached its maximum value(saturated).As you can see, the part has a transition frequency of 190MHz.Collector Emitter Breakdown occurs at 25VV - Maximum voltage.
SS8550-C-AP Features
the DC current gain for this device is 120 @ 100mA 1V
the vce saturation(Max) is 800mV @ 80mA, 800mA
a transition frequency of 190MHz
SS8550-C-AP Applications
There are a lot of Micro Commercial Co
SS8550-C-AP applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
