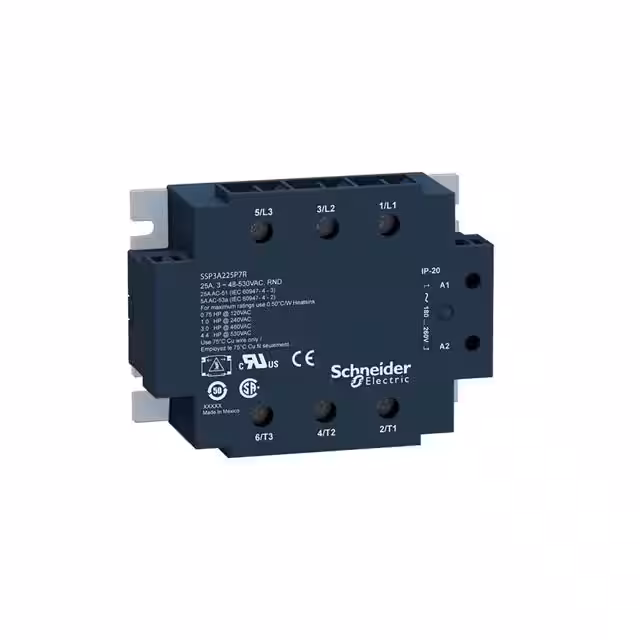

SSP3A225F7T

Manufacturer :

Schneider Electric

Product Category :

Solid State Relays

Operating Temperature Range :

-40 → +80°C

Circuit :

SPST-NO (1 Form A)

Output Type :

AC, Zero Cross

Product Status :

Active

Product Type :

SSR - Solid State Relays

Mounting Type :

Chassis Mount

Product Category :

Solid State Relays - Industrial Mount

Subcategory :

Relays

RoHS :

Details

Special Features :

For Robust Applications Requiring Considerable Heat Dissipation, SSP and SSRP Ranges Panel Mount Individually

Manufacturer :

Schneider Electric

Height :

35.5mm

Contact Configuration :

3P-NO

Standards Met :

CE, CSA, UL

Rated control supply voltage at AC 50 Hz :

90 - 140

Terminal Type :

Screw

Package :

Box

Number of Poles :

3

Depth :

97.8mm

Package / Case :

Module

Modular version :

No

Output Device :

SCR

Product :

Three Phase Relays

Rated control supply voltage at AC 60 Hz :

90 - 140

Voltage - Load :

48 V ~ 530 V

Relay Type :

Three Channel Three Phase

Length :

101.3mm

Load Current :

25 A

Voltage type for actuating :

AC

Dimensions :

101.3 x 97.8 x 35.5mm

Voltage - Input :

90 ~ 140VAC

Brand :

Schneider Electric

Series :

Harmony

Capacitance :

8pF

Termination Style :

Screw Terminal
