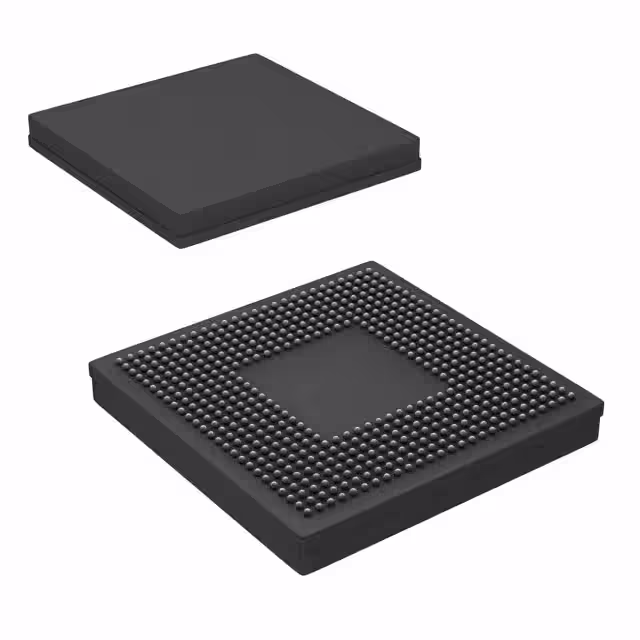

TMS320C6472ECTZA6

Manufacturer :

Texas Instruments

Product Category :

DSP (Digital Signal Processors)

Voltage - Core :

1.10V

HTS Code :

8542.31.00.01

Voltage - I/O :

1.8V 3.3V

Width :

24mm

Length :

24mm

Barrel Shifter :

No

Bit Size :

32

Terminal Pitch :

0.8mm

Min Supply Voltage :

1.05V

Number of DMA Channels :

64

Thickness :

2.65mm

Factory Lead Time :

16 Weeks

Number of Timers :

14

Moisture Sensitivity Level (MSL) :

4 (72 Hours)

Qualification Status :

Not Qualified

Boundary Scan :

yes

Lead Free :

Lead Free

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

RAM Size :

768kB

Non-Volatile Memory :

ROM (768kB)

Frequency :

625MHz

Height Seated (Max) :

3.242mm

Peak Reflow Temperature (Cel) :

245

RoHS Status :

ROHS3 Compliant

Data Bus Width :

32b

RAM (words) :

8192

Series :

TMS320C647x

Base Part Number :

320C6472

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Pin Count :

737

Mounting Type :

Surface Mount

Type :

FIXED POINT

Supply Voltage :

1.1V

Low Power Mode :

yes

Internal Bus Architecture :

Multiple

Number of Terminations :

737

Terminal Form :

Ball

Pbfree Code :

yes

Power Supplies :

1.11.83.3V

Number of Pins :

737

JESD-609 Code :

e1

Max Supply Voltage :

3.465V

Package / Case :

737-BFBGA, FCBGA

ROM Programmability :

MROM

Packaging :

Tube

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Integrated Cache :

yes

Terminal Position :

BOTTOM

On Chip Data RAM :

1.44MB

Operating Temperature :

-40°C~100°C TC

ECCN Code :

3A001.A.3

Mount :

Surface Mount

Interface :

Ethernet MAC, Host Interface, I2C, Telecom, UTPOIA
