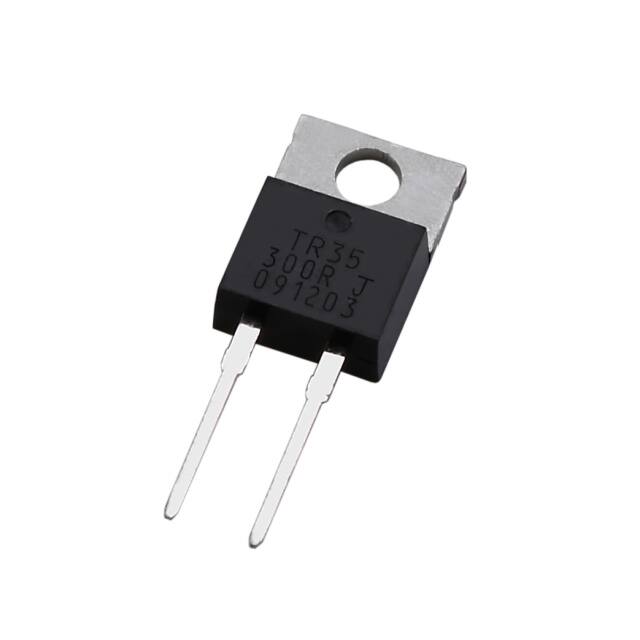

TR35JBD150R

Manufacturer :

Stackpole Electronics, Inc.

Product Category :

Through Hole Resistors

Product Type :

Thick Film Resistors

Package Length :

10.16

Mounting Feature :

THROUGH HOLE MOUNT

Tolerance :

5

Resistance :

150

Maximum Operating Temperature :

+ 175 C

Height :

15 mm

Product Status :

Active

Length :

10.16 mm

Package Shape :

RECTANGULAR PACKAGE

Package Width :

4.44

Voltage Rating :

350 V

Height - Seated (Max) :

0.762 (19.36mm)

Lead Spacing :

5.08

Subcategory :

Resistors

Lead Length :

13.7

Supplier Device Package :

TO-220

Features :

Moisture Resistant, Non-Inductive

Rated Power Dissipation (P) :

2.5

Terminal Shape :

Flat

Working Voltage :

350

Number of Terminations :

2

Technology :

Thick Film

Number of Terminals :

2

Temperature Coefficient :

100

Width :

4.6 mm

Minimum Operating Temperature :

- 65 C

Failure Rate :

-

Terminal Finish :

Matte Tin (Sn)

Power (Watts) :

35W

Rated Temperature :

25

Package :

Bulk

Series :

TR

Size Code :

4017

Size / Dimension :

0.400 L x 0.181 W (10.16mm x 4.60mm)

Packing Method :

Bulk

JESD-609 Code :

e3

Package Height :

14.75

Operating Temperature :

-65°C ~ 175°C

Construction :

RECTANGULAR

Resistor Type :

FIXED RESISTOR

Termination Style :

Radial

Power Rating :

35 W

Application :

High Power

Package / Case :

TO-220-2

Additional Feature :

NON-INDUCTIVE, RATED POWER DISSIPATION USING HEATSINK: 35W

Mounting Style :

PCB Mount

Composition :

Thick Film
