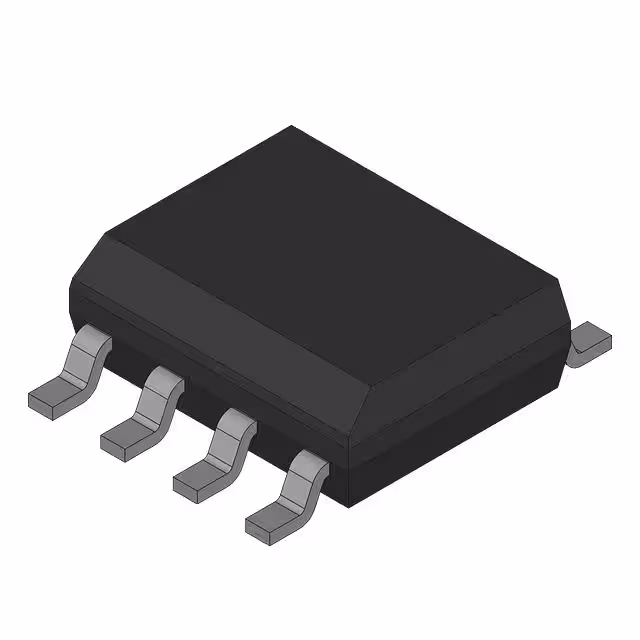

UA748CDR

Manufacturer :

Texas Instruments

Product Category :

Instrumentation, OP Amps, Buffer Amps

Supply Voltage Limit-Max :

18V

Packing Method :

Tape and Reel

Qualification Status :

Not Qualified

Common Mode Rejection Ratio :

90 dB

Reach Compliance Code :

not_compliant

Number of Terminations :

8

Surface Mount :

yes

Terminal Form :

Gull wing

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Architecture :

VOLTAGE-FEEDBACK

Input Offset Voltage-Max :

7500μV

Pin Count :

8

Power Supplies :

+-15V

Slew Rate :

0.5 V/us

Package / Case :

SOIC

Supply Voltage :

15V

Neg Supply Voltage-Max (Vsup) :

-18V

Frequency Compensation :

No

Voltage Gain-Min :

20000

JESD-30 Code :

R-PDSO-G8

Low-Offset :

No

Neg Supply Voltage-Nom (Vsup) :

-15V

Height Seated (Max) :

1.75mm

Amplifier Type :

Operational Amplifier

Number of Functions :

1

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Unity Gain BW-Nom :

1000 kHz

Average Bias Current-Max (IIB) :

0.8μA

ECCN Code :

EAR99

Operating Temperature (Max) :

70°C

RoHS Status :

Non-RoHS Compliant

Common-mode Reject Ratio-Min :

70 dB

Length :

4.9mm

HTS Code :

8542.33.00.01

Temperature Grade :

COMMERCIAL

Width :

3.9mm

Terminal Position :

Dual

Terminal Pitch :

1.27mm
