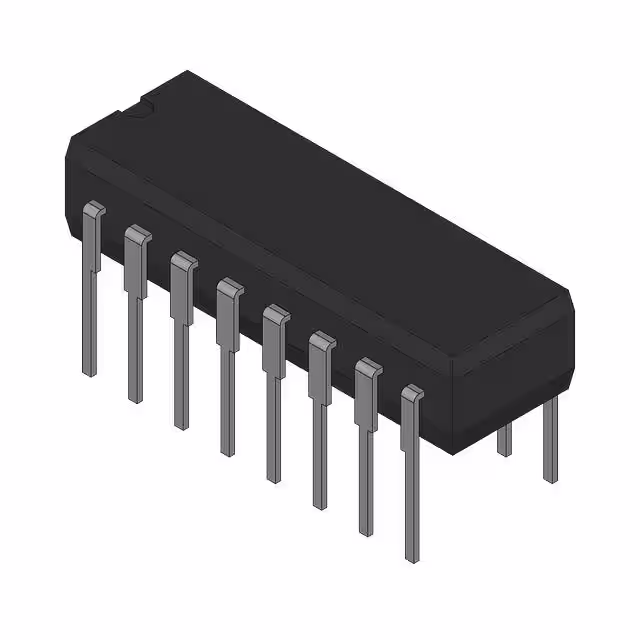

UC1823J883B

Manufacturer :

Texas Instruments

Product Category :

DC DC Switching Controllers

Serial Interfaces :

-

Factory Lead Time :

1 Week

JESD-609 Code :

e0

Control Features :

Current Limit, Enable, Frequency Control, Ramp, Soft Start

Control Technique :

PULSE WIDTH MODULATION

Product Status :

Active

Operating Temperature :

-55°C ~ 125°C (TA)

Number of Terminals :

16

Subcategory :

Switching Regulator or Controllers

Width :

6.92 mm

Length :

19.56 mm

HTS Code :

8542.39.00.01

Series :

-

Voltage - Supply (Vcc/Vdd) :

30V

Clock Sync :

No

Pin Count :

16

Output Type :

PWM

Reach Compliance Code :

Unknown

Synchronous Rectifier :

No

ECCN Code :

EAR99

Output Voltage-Min :

5.05 V

Number of Outputs :

1

Output Current-Max :

2 A

Terminal Pitch :

2.54 mm

Temperature Grade :

Military

Control Mode :

VOLTAGE-MODE

Terminal Form :

THROUGH-HOLE

Input Voltage-Nom :

15 V

Additional Feature :

CAN ALSO BE CONFIGURED IN CURRENT MODE

Switching Frequency-Max :

1000 kHz

Function :

Step-Down

JESD-30 Code :

R-GDIP-T16

Supplier Device Package :

16-CDIP

Mounting Type :

Through Hole

Qualification Status :

Not Qualified

Duty Cycle (Max) :

80%

Supply Current-Max (Isup) :

33 mA

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Package / Case :

16-CDIP (0.300, 7.62mm)

Output Phases :

1

Technology :

Bipolar

Brand Name :

Texas

Surface Mount :

No

Topology :

Buck

Terminal Finish :

Tin/Lead (Sn/Pb)

Output Voltage-Max :

5.15 V

Screening Level :

MIL-STD-883 Class B

Manufacturer :

Unitrode Corporation

Package :

Bulk

Analog IC - Other Type :

SWITCHING CONTROLLER

Number of Functions :

1

Output Configuration :

Positive

Terminal Position :

Dual

Switcher Configuration :

Buck-Boost

Seated Height-Max :

4.57 mm

Package Shape :

RECTANGULAR

Frequency - Switching :

1MHz
