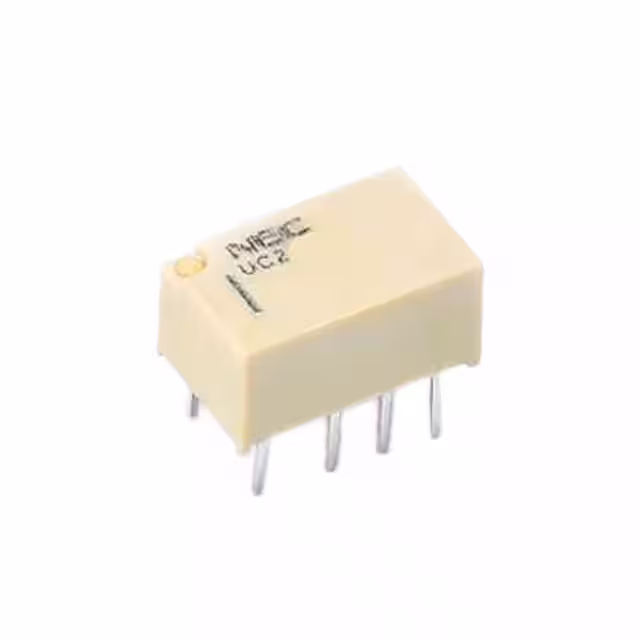

UC2-12NU

Manufacturer :

KEMET

Product Category :

Signal Relays, Up to 2 Amps

Relay Function :

DPDT

Input Switching Control Type :

Random

Electrical Life :

100000

Number of Terminals :

8

Contact Voltage(AC)-Max :

250

Coil Operate Voltage(DC) :

9

Coil/Input Supply Type :

DC

Series :

UC2/UD2

Dielectric Strength Between Open Contacts :

1000

Contact/Output Supply Type :

AC/DC

Physical Dimension :

10.6mm x 6.5mm x 5.3mm

Contact Resistance :

100

Dielectric Strength Between Coil and Contacts :

1500

Body Breadth :

6.5

Relay Form :

2 Form C

Coil Power :

140

Termination Type :

Solder

Operate Time :

2

Insulation Resistance :

1000000000

PCB Hole Count :

8

End Contact Material :

Silver Alloy

Relay Type :

POWER/SIGNAL RELAY

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Release Time :

1

Coil Release Voltage(DC) :

1.2

Contact Voltage(DC)-Max :

220

Body Length or Diameter :

10.6

Body Height :

5.3

End Contact Plating :

GOLD ALLOY

Coil Current(DC)-Max :

.012

Reference Standard :

CSA; TUV; UL

Relay Action :

Momentary

Packing Method :

Tube

Weight :

0.8

Coil Voltage(DC)-Max :

12

Coil Resistance :

1028

Contact Current(AC)-Max :

1

Contact Current(DC)-Max :

1
