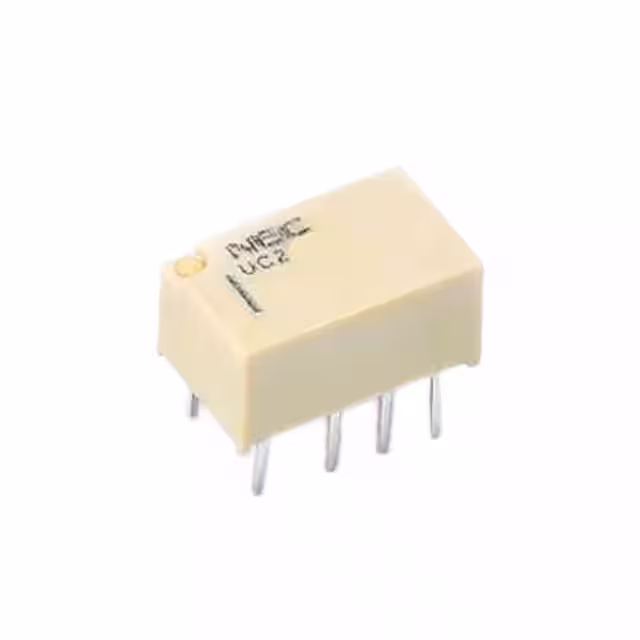

UC2-5NU

Manufacturer :

KEMET

Product Category :

Signal Relays, Up to 2 Amps

Contact Current(DC)-Max :

1

Packing Method :

Tube

PCB Hole Count :

8

End Contact Plating :

GOLD ALLOY

Body Height :

5.3

Body Breadth :

6.5

Dielectric Strength Between Coil and Contacts :

1500

Coil/Input Supply Type :

DC

Weight :

0.8

Relay Type :

POWER/SIGNAL RELAY

Contact Voltage(DC)-Max :

220

Number of Terminals :

8

Contact Current(AC)-Max :

1

Coil Release Voltage(DC) :

.5

Operate Time :

2

Reference Standard :

CSA; TUV; UL

Relay Form :

2 Form C

Contact Voltage(AC)-Max :

250

Body Length or Diameter :

10.6

Series :

UC2/UD2

Termination Type :

Solder

Coil Voltage(DC)-Max :

5

End Contact Material :

Silver Alloy

Relay Action :

Momentary

Insulation Resistance :

1000000000

Contact/Output Supply Type :

AC/DC

Release Time :

1

Relay Function :

DPDT

Coil Resistance :

178

Coil Power :

140

Coil Current(DC)-Max :

.028

Input Switching Control Type :

Random

Dielectric Strength Between Open Contacts :

1000

Coil Operate Voltage(DC) :

3.75

Physical Dimension :

10.6mm x 6.5mm x 5.3mm

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Electrical Life :

100000

Contact Resistance :

100
