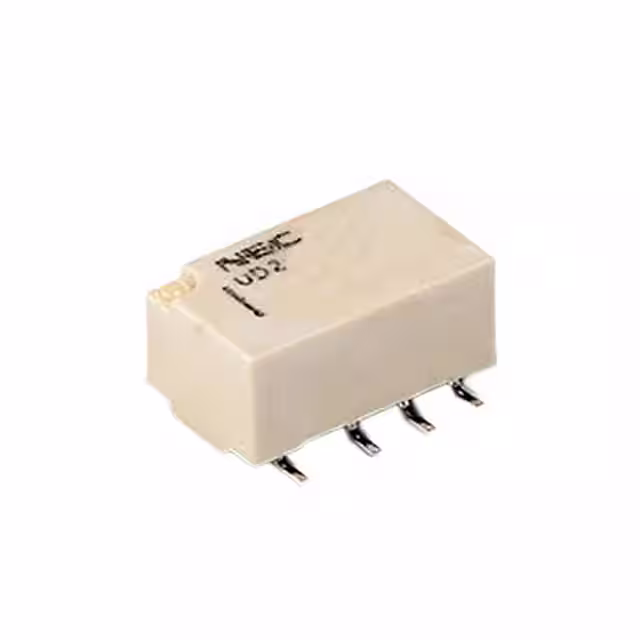

UD2-4.5NUN

Manufacturer :

KEMET

Product Category :

Signal Relays, Up to 2 Amps

Coil Power :

140

End Contact Plating :

GOLD ALLOY

Dielectric Strength Between Coil and Contacts :

1500

Weight :

0.8

Coil Resistance :

145

Operate Time :

2

Contact Voltage(DC)-Max :

220

Contact Current(AC)-Max :

1

Contact Current(DC)-Max :

1

Input Switching Control Type :

Random

End Contact Material :

Silver Alloy

Body Breadth :

6.5

Termination Type :

Solder

Relay Type :

POWER/SIGNAL RELAY

Release Time :

1

Insulation Resistance :

1000000000

Coil Release Voltage(DC) :

.45

Relay Action :

LATCHED

Electrical Life :

100000

Reference Standard :

CSA; TUV; UL

Mounting Feature :

SURFACE MOUNT-STRAIGHT

Relay Form :

2 Form C

Physical Dimension :

10.6mm x 6.5mm x 5.45mm

Coil Operate Voltage(DC) :

3.38

Number of Terminals :

8

Contact Resistance :

100

Series :

UC2/UD2

Coil/Input Supply Type :

DC

Body Height :

5.45

Dielectric Strength Between Open Contacts :

1000

Body Length or Diameter :

10.6

Contact Voltage(AC)-Max :

250

Relay Function :

DPDT

Contact/Output Supply Type :

AC/DC
