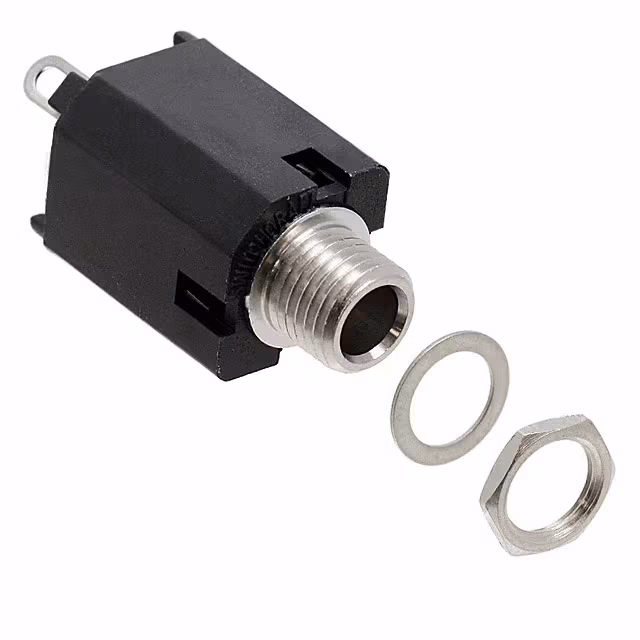

UJ2B

Manufacturer :

Switchcraft / Conxall

Product Category :

Audio Connectors

Number of Positions/Contacts :

3 Conductors, 3 Contacts

Internal Switch(s) :

Does Not Contain Switch

Industry Recognized Mating Diameter :

4.39mm (0.173)

Body Material :

COPPER ALLOY

MIL Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Gender :

FEMALE

Contact Material :

Brass; Copper Alloy

Mixed Contacts :

No

Connector Type :

Phone Jack

Shielding :

Unshielded

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

Not Applicable

Thread Size :

9/32-32

Shell Material :

POLYETHYLENE

Signal Lines :

Stereo (3 Conductor, TRS)

Actual Diameter :

0.177 (4.48mm)

IEC Conformance :

No

Housing Material :

Thermoplastic

Body Color :

Silver, Black

Mounting Type :

Panel Mount

JESD-609 Code :

e4

Feature :

Mounting Hardware, Thread Lock

Total Number of Contacts :

3

Termination :

Solder Eyelet(s)

Empty Shell :

yes

Filter Feature :

No

Option :

GENERAL PURPOSE

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Published :

2008

Series :

UNIJAX®

RoHS Status :

ROHS3 Compliant
