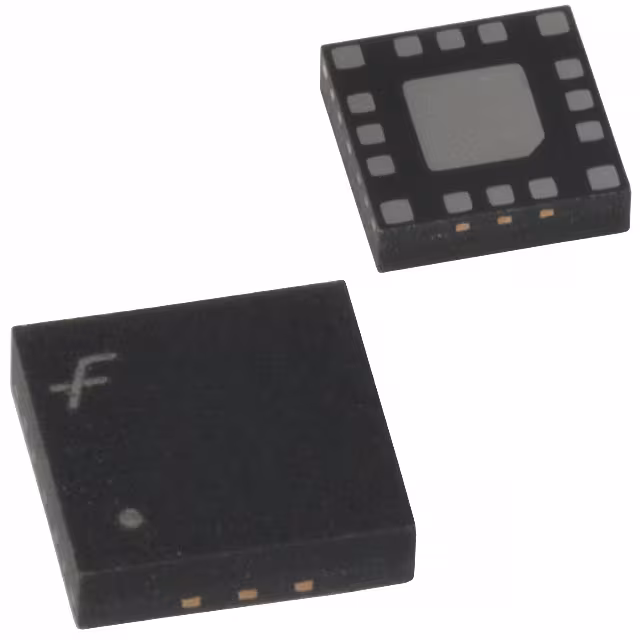

USB1T11ABQX

Manufacturer :

onsemi

Product Category :

Drivers, Receivers, Transceivers

Terminal Finish :

NICKEL PALLADIUM GOLD

Supply Voltage-Min (Vsup) :

3V

Supply Voltage-Max (Vsup) :

3.6V

JESD-609 Code :

e4

Package / Case :

16-VFQFN Exposed Pad

RoHS Status :

ROHS3 Compliant

Output Polarity :

TRUE

Output Characteristics :

3-STATE

Family :

USB

Pin Count :

16

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Bits :

1

Type :

Transceiver

Supply Voltage :

3.3V

Mounting Type :

Surface Mount

Surface Mount :

yes

Peak Reflow Temperature (Cel) :

260

Terminal Position :

QUAD

Terminal Form :

NO LEAD

Data Rate :

12Mbps

Duplex :

Half

Packaging :

Tape and Reel (TR)

Operating Temperature :

-40°C~85°C

JESD-30 Code :

S-XQCC-N16

Number of Drivers/Receivers :

1/1

Number of Terminations :

16

Width :

3mm

Voltage - Supply :

3V~3.6V

Terminal Pitch :

0.5mm

Protocol :

USB 1.1

Number of Ports :

2

Propagation Delay (tpd) :

300 ns

Length :

3mm

Number of Functions :

1

Pbfree Code :

yes

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Height Seated (Max) :

1mm
