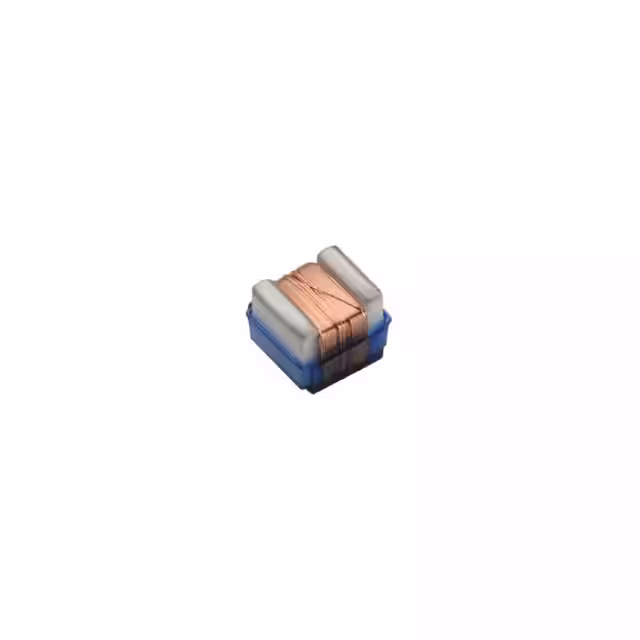

WL08JT15N

Manufacturer :

Viking Tech

Product Category :

Fixed Inductors

Construction :

Chip

Number of Terminals :

2

Rated Current-Max :

1 A

Q @ Freq :

50 @ 500MHz

Current Rating (Amps) :

1 A

HTS Code :

8504.50.80.00

Product Status :

Active

Manufacturer :

Viking Technology

Reference Standard :

AEC-Q200

Core Material :

Ceramic

Supplier Device Package :

1008

Terminal Placement :

DUAL ENDED

Reach Compliance Code :

Unknown

Test Frequency :

50 MHz

Inductance Frequency - Test :

50 MHz

Terminal Shape :

ONE SURFACE

Shape/Size Description :

RECTANGULAR PACKAGE

Package / Case :

1008 (2520 Metric)

Package Height :

2.03 mm

Mounting Type :

Surface Mount

Inductor Type :

GENERAL PURPOSE INDUCTOR

Size / Dimension :

0.115 L x 0.110 W (2.92mm x 2.79mm)

DC Resistance :

0.11 Ω

Number of Functions :

1

Inductance :

15 nH

Case/Size Code :

1111

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Operating Temperature :

-40°C ~ 125°C

Material - Core :

Ceramic

Package Width :

2.79 mm

JESD-609 Code :

e3

Inductor Application :

RF INDUCTOR

Features :

-

Package :

Tape and Reel (TR)

ECCN Code :

EAR99

Rad Hardened :

No

Shielded :

No

Tolerance :

±5%

Ratings :

AEC-Q200

Surface Mount :

yes

Quality Factor-Min (at L-nom) :

50

Frequency - Self Resonant :

2.5GHz

Package Length :

2.92 mm

Height - Seated (Max) :

0.084 (2.13mm)

DC Resistance (DCR) :

110mOhm Max

Series :

WL

Packing Method :

TR

Shielding :

Unshielded

Inductance-Nom (L) :

0.015 µH

Current - Saturation (Isat) :

-

Packaging :

Tape and Reel

Special Feature :

Q MEASURED AT 500 MHZ

Type :

Drum Core, Wirewound
