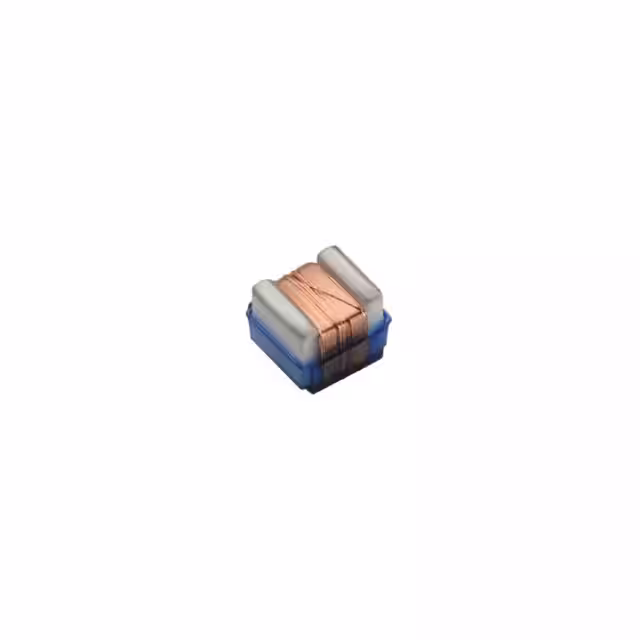

WL08JTR15

Manufacturer :

Viking Tech

Product Category :

Fixed Inductors

Product Status :

Active

DC Resistance :

0.7 Ω

Current Rating (Amps) :

800 mA

Tolerance :

±5%

Package Width :

2.79 mm

Type :

Drum Core, Wirewound

Reach Compliance Code :

Unknown

Operating Temperature :

-40°C ~ 125°C

Shape/Size Description :

RECTANGULAR PACKAGE

Inductor Type :

GENERAL PURPOSE INDUCTOR

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Case/Size Code :

1111

JESD-609 Code :

e3

Reference Standard :

AEC-Q200

Material - Core :

Ceramic

Packaging :

Tape and Reel

Q @ Freq :

45 @ 100MHz

DC Resistance (DCR) :

700mOhm Max

Test Frequency :

25 MHz

Mounting Type :

Surface Mount

Inductance-Nom (L) :

0.15 µH

Construction :

Chip

Rated Current-Max :

0.8 A

Packing Method :

TR

Surface Mount :

yes

Height - Seated (Max) :

0.084" (2.13mm)

Shielding :

Unshielded

Inductance Frequency - Test :

25 MHz

Rad Hardened :

No

Frequency - Self Resonant :

850MHz

ECCN Code :

EAR99

Inductor Application :

RF INDUCTOR

Package / Case :

1008 (2520 Metric)

Features :

-

Core Material :

Ceramic

Number of Functions :

1

HTS Code :

8504.50.80.00

Ratings :

AEC-Q200

Terminal Placement :

DUAL ENDED

Inductance :

150 nH

Package :

Tape and Reel (TR)

Number of Terminals :

2

Current - Saturation (Isat) :

-

Shielded :

No

Special Feature :

Q MEASURED AT 100 MHZ

Package Height :

2.03 mm

Supplier Device Package :

1008

Size / Dimension :

0.115" L x 0.110" W (2.92mm x 2.79mm)

Quality Factor-Min (at L-nom) :

45

Package Length :

2.92 mm

Series :

WL

Manufacturer :

Viking Technology

Terminal Shape :

ONE SURFACE
