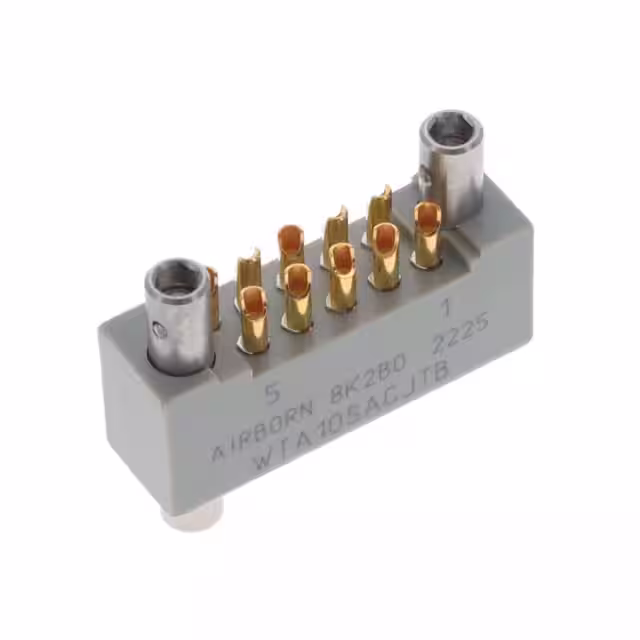

WTA10SACJTB

Manufacturer :

AirBorn

Product Category :

Specialized

Series :

*

Additional Feature :

PANEL MOUNTABLE

Mounting Style :

Panel Mount

Voltage Rating :

-

Tradename :

W Series

Body/Shell Style :

Receptacle

Package :

Retail Package

Reach Compliance Code :

Compliant

Contact Finish Thickness :

-

Housing Material :

Polyphenylene Sulfide (PPS)

Subcategory :

MIL-Spec / MIL-Type

Features :

Mating Guide

Maximum Operating Temperature :

+ 125 C

Current Rating (Amps) :

5A

RoHS :

Details

MIL Conformance :

No

Color :

-

Number of Positions Loaded :

All

Product :

Connectors

Termination Style :

Solder Cup

Contact Finish :

Gold

Mixed Contacts :

No

Operating Temperature :

-65°C ~ 125°C

Total Number of Contacts :

10

Number of Columns :

5

Connector Usage :

-

Option :

GENERAL PURPOSE

Connector Type :

Receptacle, Female Sockets

Number of Positions :

10 Position

Contact Layout, Typical :

-

Filter Feature :

No

Termination :

Solder Cup

Number of Rows :

2 Row

Current Rating :

5 A

IEC Conformance :

No

Contact Material :

BERYLLIUM COPPER

Contact Gender :

Socket (Female)

Terminal Pitch :

2.54 mm

Pitch :

2.54 mm

Minimum Operating Temperature :

- 65 C

Material Flammability Rating :

-

Product Category :

Rectangular MIL Spec Connectors

Product Type :

Rectangular MIL Spec Connectors

Brand :

AirBorn

Termination Type :

Solder

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Product Status :

Active

Mounting Angle :

Straight

Wire Gauge - AWG :

22 AWG

Contact Plating :

Gold

Connector Style :

-

Mounting Type :

Free Hanging (In-Line)

Insulation Resistance :

5000 MOhms

DIN Conformance :

No

Manufacturer :

AirBorn
