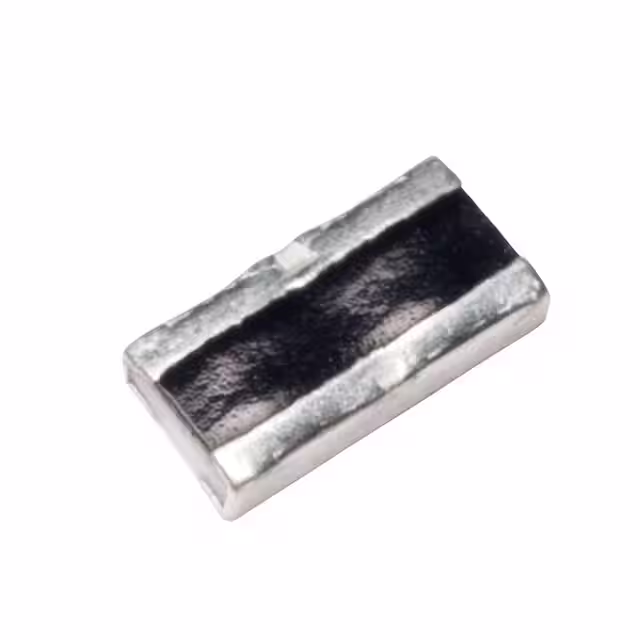

WU732B15TTD25L0F

Manufacturer :

KOA Speer Electronics, Inc.

Product Category :

Chip Resistor - Surface Mount

Product Height (mm) :

0.6(mm)

Package Type :

SMD

Failure Rate :

-

Construction :

RECTANGULAR

Size / Dimension :

0.063" L x 0.126" W (1.60mm x 3.20mm)

Operating Temp Range :

-55C to 155C

RoHS :

Details

Base Product Number :

WU732B

Power Rating :

1.5W

Number of Terminations :

2

Supplier Device Package :

0612

Power Rating(s) :

1.5(W)

Brand :

KOA Speer

Power (Watts) :

1.5W

Package/Case :

0612 (1632M)

Product Length (mm) :

1.6(mm)

Case Size :

0612

Ratings :

AEC-Q200

Termination Style :

WIDE TERMINAL

Product Status :

Active

Manufacturer :

KOA Speer

Composition :

Thick Film

Military Standard :

Not Required

Technology :

Thick Film

Current Sensing :

yes

Product Diameter (mm) :

Not Required(mm)

Resistance :

25 mOhms

Minimum Operating Temperature :

- 55 C

Height - Seated (Max) :

0.028" (0.70mm)

Subcategory :

Resistors

Package :

Digi-Reel?

Qualification :

AEC-Q200

Length :

1.6 mm

Tolerance (+ or -) :

1%

Series :

-

Product Depth (mm) :

3.2(mm)

Product Category :

Current Sense Resistors - SMD

Operating Temperature :

-55°C ~ 155°C

Features :

Automotive AEC-Q200, Moisture Resistant

Number of Terminals :

2

Lead Spacing (nom) :

Not Required(mm)

Height :

0.6 mm

Application :

Current Sense

Mounting Style :

PCB Mount

Package / Case :

Wide 1206 (3216 Metric), 0612

Temperature Range @ Derated Power :

70 TO 155

Temperature Coefficient :

±75ppm/°C

Tolerance :

±1%

Anti-Surge :

No

Packaging :

Tape and Reel

Width :

3.2 mm

Maximum Operating Temperature :

+ 155 C

Termination :

2 Terminal

Type :

Wide Terminal Type Flat Chip Resistor

Anti-Sulfurated :

No

Product Type :

Current Sense Resistors
