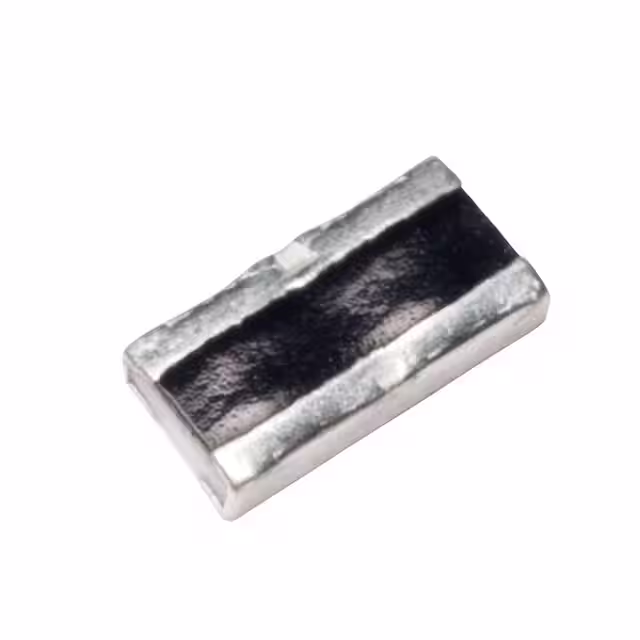

WU732B15TTD30L0F

Manufacturer :

KOA Speer Electronics, Inc.

Product Category :

Chip Resistor - Surface Mount

Maximum Operating Temperature :

+ 155 C

Power (Watts) :

1.5W

Power Rating :

1.5 W

Package :

Digi-Reel?

Base Product Number :

WU732B

Temperature Coefficient :

±100ppm/°C

Product Type :

Current Sense Resistors

Product Height (mm) :

0.6(mm)

Anti-Surge :

No

Subcategory :

Resistors

Termination :

2 Terminal

Power Rating(s) :

1.5(W)

Package Type :

SMD

Anti-Sulfurated :

No

Qualification :

AEC-Q200

Height :

0.6 mm

Package / Case :

Wide 1206 (3216 Metric), 0612

Features :

Automotive AEC-Q200, Moisture Resistant

Size / Dimension :

0.063" L x 0.126" W (1.60mm x 3.20mm)

Tolerance (+ or -) :

1%

Failure Rate :

-

Termination Style :

WIDE TERMINAL

Construction :

RECTANGULAR

Current Sensing :

yes

Series :

WU73

Height - Seated (Max) :

0.028" (0.70mm)

Supplier Device Package :

0612

Application :

Current Sense

Product Category :

Current Sense Resistors - SMD

Operating Temperature :

-55°C ~ 155°C

Ratings :

AEC-Q200

Number of Terminals :

2

Tolerance :

±1%

Resistance :

30 mOhms

Number of Terminations :

2

Product Depth (mm) :

3.2(mm)

Packaging :

Tape and Reel

Minimum Operating Temperature :

- 55 C

Military Standard :

Not Required

Product Status :

Active

Mounting Style :

PCB Mount

Manufacturer :

KOA Speer

Operating Temp Range :

-55C to 155C

Temperature Range @ Derated Power :

70 TO 155

Lead Spacing (nom) :

Not Required(mm)

Case Size :

0612

Length :

1.6 mm

Width :

3.2 mm

Composition :

Thick Film

Type :

Wide Terminal Type Flat Chip Resistor

Product Diameter (mm) :

Not Required(mm)

Brand :

KOA Speer

Product Length (mm) :

1.6(mm)
