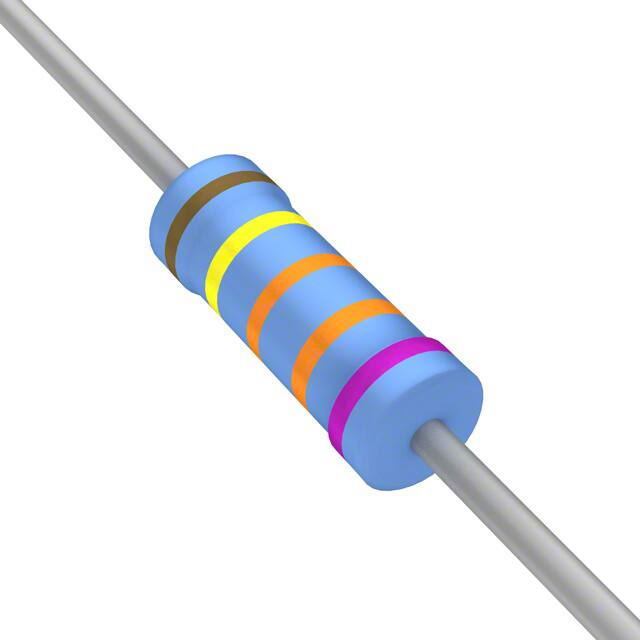

YR1B143KCC

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Lifecycle Status :

Production (Last Updated: 1 week ago)

Number of Resistors :

1

Brand :

TE Connectivity / Holsworthy

Product Type :

Metal Film Resistors

Min Operating Temperature :

-65 °C

Power (Watts) :

0.25W, 1/4W

Working Voltage :

250 V

Max Power Dissipation :

250 mW

Diameter :

2.3 mm

Lead Diameter :

0.6 mm

Pbfree Code :

yes

Package Shape :

TUBULAR PACKAGE

Product :

Precision Metal Film Resistors

Construction :

Tubular

Military Standard :

Not Required

Termination Style :

Axial

Product Length (mm) :

6.3(mm)

Temperature Coefficient :

15 ppm/°C

ELV :

Compliant

Product Category :

Metal Film Resistors - Through Hole

RoHS :

Details

Flame-Proof Support :

No

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Factory Lead Time :

11 Weeks

Packing Method :

Ammo Pack

Product Length :

6.3

Type :

Thin Film

Operating Temp Range :

-65C to 155C

Voltage Rating :

250 V

Package :

Tape and Box (TB)

Voltage Rating (DC) :

500 V

Tolerance (+ or -) :

0.1%

Resistance :

143000 Ω

Package Length :

6.3 mm

Size / Dimension :

0.091 Dia x 0.248 L (2.30mm x 6.30mm)

Mounting Style :

PCB Mount

Additional Feature :

PRECISION

Base Product Number :

YR1B

Package / Case :

Axial

Radiation Hardening :

No

Power Rating(s) :

0.25 (1/4)(W)

Termination :

Axial

Resistance Tolerance :

0.1

Operating Temperature :

-65°C ~ 155°C

Failure Rate :

--

Temperature Range @ Derated Power :

70 TO 155

Mount :

Axial, Through Hole

Reach Compliance Code :

Compliant

Terminal Shape :

Wire

Power Rating :

0.25 W

Product Status :

Active

Tolerance :

0.1%

Number of Pins :

2

Product Height (mm) :

Not Required(mm)

Features :

--

Product Diameter (mm) :

2.3(mm)

Supplier Device Package :

Axial

Minimum Operating Temperature :

-65°C

Series :

YR, Neohm

Lead Spacing (nom) :

Not Required(mm)

Product Depth (mm) :

Not Required(mm)

Maximum Operating Temperature :

+155°C

Number of Terminations :

2

Height - Seated (Max) :

--

Surface Mount :

No

Packaging :

Tape and Box (TB)

Resistor Type :

FIXED RESISTOR

Mounting Feature :

THROUGH HOLE MOUNT

Lead Length :

25 mm

Max Operating Temperature :

155 °C

Case Style :

Epoxy

Composition :

Metal Film

Number of Terminals :

2

Rated Power Dissipation (P) :

0.25 W

Length :

6.3 mm
