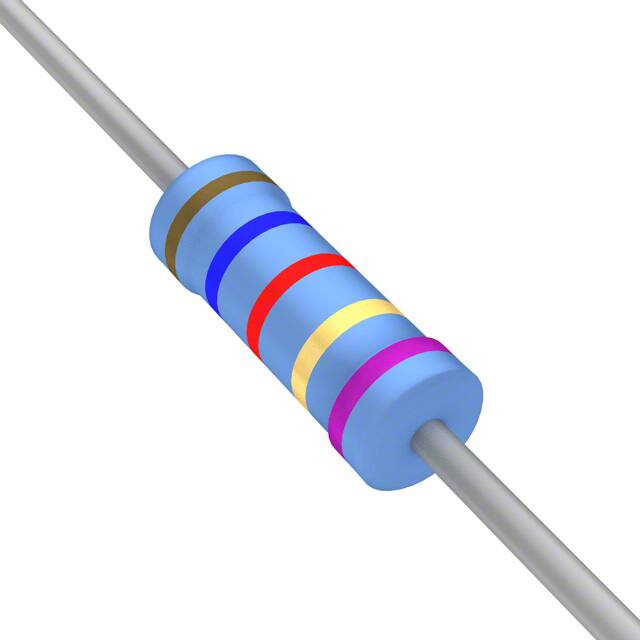

YR1B16R2CC

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Flame-Proof Support :

No

Supplier Device Package :

Axial

Failure Rate :

--

Resistor Type :

PRECISION

Product Width :

-

ECCN Code :

EAR99

Product :

Precision Metal Film Resistors

Features :

--

Package Length :

6.3 mm

Resistance :

16.2 Ohm

Product Diameter (mm) :

2.3(mm)

Minimum Operating Temperature :

- 65 C

Military Standard :

Not Required

Tolerance :

±0.1%

Mounting Feature :

THROUGH HOLE MOUNT

Height - Seated (Max) :

--

Package / Case :

Axial

Brand :

TE Connectivity / Holsworthy

Manufacturer :

TE Connectivity

Resistance Tolerance :

0.1

Type :

Thin Film

Packaging :

Tape and Box (TB)

Additional Feature :

PRECISION

Temperature Range @ Derated Power :

70 TO 155

Rated Power Dissipation (P) :

0.25 W

Power Rating(s) :

0.25 (1/4)(W)

Length :

6.3 mm

Size / Dimension :

0.091 Dia x 0.248 L (2.30mm x 6.30mm)

Reach Compliance Code :

Compliant

Product Type :

Metal Film Resistors

Composition :

Metal Film

Series :

YR, Neohm

Voltage Rating :

500V

Tolerance (+ or -) :

0.1%

Qualification :

-

Maximum Operating Temperature :

+ 155 C

Package :

Tape and Box (TB)

Power Rating :

0.25 W

Surface Mount :

No

Mounting Style :

PCB Mount

Number of Terminals :

2

Working Voltage :

250 V

Lead Spacing (nom) :

Not Required(mm)

Diameter :

2.3 mm

Operating Temperature :

-65°C ~ 155°C

Base Product Number :

YR1B

RoHS :

Details

Package Shape :

TUBULAR PACKAGE

Product Height (mm) :

Not Required(mm)

Temperature Coefficient :

15.0000 ppm/°C

Power (Watts) :

0.25W, 1/4W

Packing Method :

Ammo Pack

Factory Lead Time :

10 Weeks, 6 Days

Product Depth (mm) :

Not Required(mm)

Termination Style :

Axial

Product Length (mm) :

6.3(mm)

Case Style :

Epoxy

Pbfree Code :

yes

Technology :

Metal Film

Construction :

Cylindrical

Product Category :

Metal Film Resistors - Through Hole

Product Status :

Active

Lead Length :

25 mm

Subcategory :

Resistors

Product Length :

6.3

Terminal Shape :

Wire

Operating Temp Range :

-65C to 155C

Lead Diameter :

0.6 mm

Number of Terminations :

2
