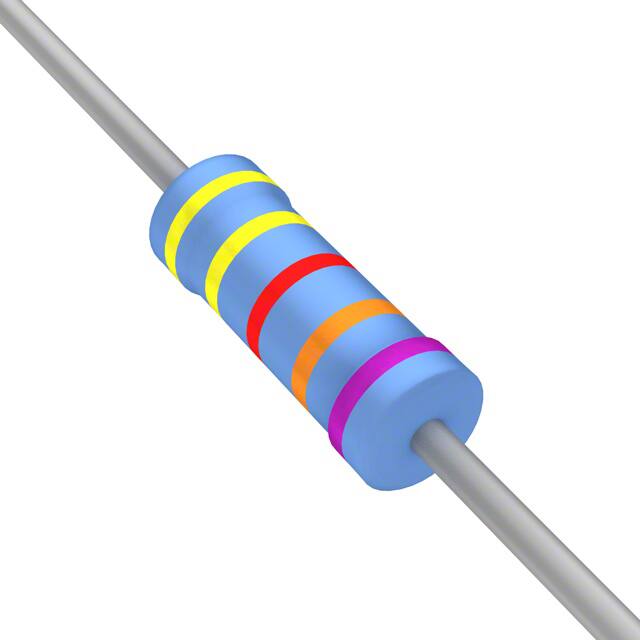

YR1B442KCC

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Product Height (mm) :

Not Required(mm)

Power (Watts) :

0.25W, 1/4W

Operating Temperature :

-65°C ~ 155°C

Lead Length :

25 mm

Composition :

Metal Film

Length :

6.3 mm

Mounting Feature :

THROUGH HOLE MOUNT

Supplier Device Package :

Axial

Case Style :

Epoxy

Power Rating(s) :

0.25 (1/4)(W)

Resistance Tolerance :

0.1

Base Product Number :

YR1B

Brand :

TE Connectivity / Holsworthy

Package / Case :

Axial

Size / Dimension :

0.091 Dia x 0.248 L (2.30mm x 6.30mm)

Tolerance :

0.1%

Mounting Style :

PCB Mount

Product Depth (mm) :

Not Required(mm)

Failure Rate :

Not Required

Package Length :

6.3 mm

Diameter :

2.3 mm

Resistor Type :

FIXED RESISTOR

Height - Seated (Max) :

-

Pbfree Code :

yes

Rated Power Dissipation (P) :

0.25 W

Product Length :

6.3

Additional Feature :

PRECISION

Temperature Range @ Derated Power :

70 TO 155

Lead Spacing (nom) :

Not Required(mm)

ECCN Code :

EAR99

Operating Temp Range :

-65C to 155C

Construction :

Tubular

Temperature Coefficient :

15 ppm/°C

Package Shape :

TUBULAR PACKAGE

Product Status :

Active

Minimum Operating Temperature :

-65°C

Packing Method :

Ammo Pack

Packaging :

Ammo

Terminal Shape :

Wire

Working Voltage :

250 V

Product Diameter (mm) :

2.3(mm)

Maximum Operating Temperature :

+155°C

Resistance :

442000 Ω

Number of Terminations :

2

Type :

Thin Film

Tolerance (+ or -) :

0.1%

Factory Lead Time :

13 Weeks, 6 Days

Product Category :

Metal Film Resistors - Through Hole

Military Standard :

Not Required

Power Rating :

0.25 W

Lead Diameter :

0.6 mm

Product Length (mm) :

6.3(mm)

Series :

R

Flame-Proof Support :

No

Package :

Tape and Box (TB)

Surface Mount :

No

Reach Compliance Code :

Compliant

Product Type :

Metal Film Resistors

Features :

-

Number of Terminals :

2

Termination Style :

Axial
