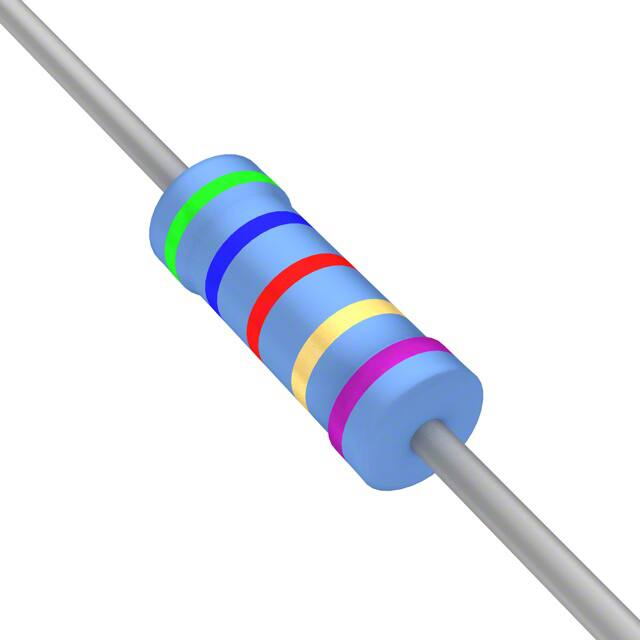

YR1B56R2CC

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Maximum Operating Temperature :

+155°C

Package Length :

6.3 mm

Product Length (mm) :

6.3(mm)

Factory Lead Time :

15 Weeks

Terminal Shape :

Wire

Minimum Operating Temperature :

-65°C

Power Rating(s) :

0.25 (1/4)(W)

Tolerance :

0.1%

Resistor Type :

FIXED RESISTOR

Termination Style :

Axial

Brand :

TE Connectivity / Holsworthy

Package :

Tape and Box (TB)

Construction :

Tubular

Temperature Range @ Derated Power :

70 TO 155

Pbfree Code :

yes

Series :

R

Product Category :

Metal Film Resistors - Through Hole

Temperature Coefficient :

15 ppm/°C

Power (Watts) :

0.25W, 1/4W

Product Length :

6.3

Size / Dimension :

0.091 Dia x 0.248 L (2.30mm x 6.30mm)

Mounting Style :

PCB Mount

Case Style :

Epoxy

Resistance :

56.2 Ω

Number of Terminations :

2

Product :

Precision Metal Film Resistors

Resistance Tolerance :

0.1

Mounting Feature :

THROUGH HOLE MOUNT

Failure Rate :

Not Required

Working Voltage :

250 V

Product Depth (mm) :

Not Required(mm)

Supplier Device Package :

Axial

Length :

6.3 mm

Operating Temp Range :

-65C to 155C

Type :

Thin Film

Package / Case :

Axial

Flame-Proof Support :

No

Military Standard :

Not Required

Power Rating :

0.25 W

Product Status :

Active

Product Type :

Metal Film Resistors

Packaging :

Ammo

Packing Method :

Ammo Pack

Product Height (mm) :

Not Required(mm)

Lead Diameter :

0.6 mm

Operating Temperature :

-65°C ~ 155°C

Lead Length :

25 mm

Tolerance (+ or -) :

0.1%

RoHS :

Details

Features :

-

Package Shape :

TUBULAR PACKAGE

ECCN Code :

EAR99

Base Product Number :

YR1B

Product Diameter (mm) :

2.3(mm)

Additional Feature :

PRECISION

Height - Seated (Max) :

-

Diameter :

2.3 mm

Composition :

Metal Film

Lead Spacing (nom) :

Not Required(mm)

Surface Mount :

No

Number of Terminals :

2

Reach Compliance Code :

Compliant

Voltage Rating :

250 V

Rated Power Dissipation (P) :

0.25 W
