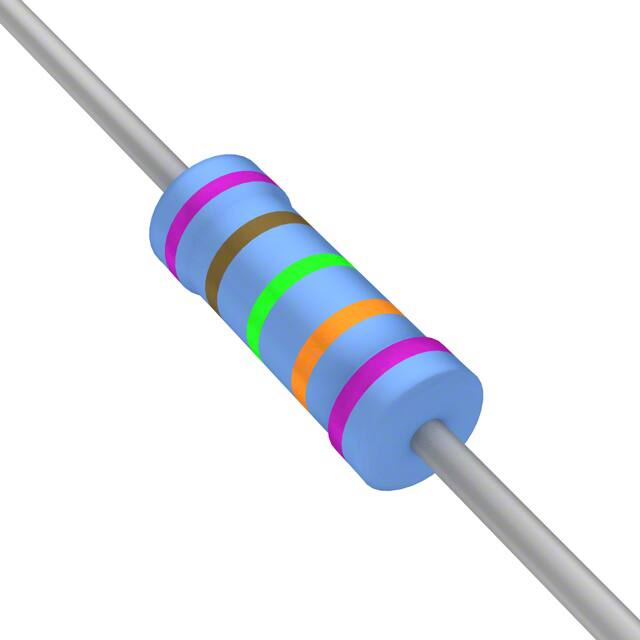

YR1B715KCC

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Lifecycle Status :

Production (Last Updated: 1 week ago)

Package :

Tape and Box (TB)

Termination Style :

Axial

Type :

Precision Resistor

Mount :

Axial, Through Hole

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Product :

Precision Metal Film Resistors

Number of Resistors :

1

Mounting Feature :

THROUGH HOLE MOUNT

Mounting Style :

PCB Mount

Working Voltage :

250 V

Composition :

Metal Film

Radiation Hardening :

No

Power Rating :

0.25W

Brand :

TE Connectivity / Holsworthy

RoHS :

Details

Maximum Operating Temperature :

+155°C

Minimum Operating Temperature :

-65°C

Product Type :

Metal Film Resistors

Length :

6.3 mm

Tolerance :

0.1%

Product Status :

Active

Number of Terminations :

2

Temperature Coefficient :

15 ppm/°C

Supplier Device Package :

Axial

Features :

-

Number of Pins :

2

Surface Mount :

No

Additional Feature :

PRECISION

Resistor Type :

FIXED RESISTOR

Failure Rate :

-

Package / Case :

Axial

Series :

YR, Neohm

Rated Power Dissipation (P) :

0.25 W

Operating Temperature :

-65°C ~ 155°C

ELV :

Compliant

Packing Method :

Ammo Pack

Size / Dimension :

0.091 Dia x 0.248 L (2.30mm x 6.30mm)

Factory Lead Time :

10 Weeks, 6 Days

Voltage Rating (DC) :

500 V

Power (Watts) :

0.25W, 1/4W

Voltage Rating :

250 V

ECCN Code :

EAR99

Lead Diameter :

0.6 mm

Package Shape :

TUBULAR PACKAGE

Diameter :

2.3 mm

Max Operating Temperature :

155 °C

Construction :

Tubular

Height - Seated (Max) :

-

Terminal Shape :

Wire

Pbfree Code :

yes

Termination :

Axial

Number of Terminals :

2

Packaging :

Bulk

Lead Length :

25 mm

Package Length :

6.3 mm

Min Operating Temperature :

-65 °C

Resistance :

715000 Ω

Product Category :

Metal Film Resistors - Through Hole

Base Product Number :

YR1B

Reach Compliance Code :

Compliant

Max Power Dissipation :

250 mW
