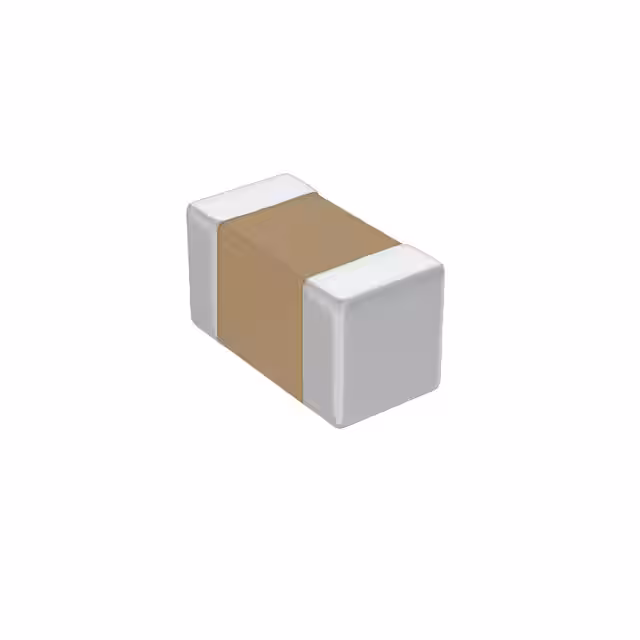

Z0402C330CSMST

Manufacturer :

KEMET

Product Category :

Ferrite Beads and Chips

Factory Lead Time :

79 Weeks

Subcategory :

Ferrites

Series :

Z-SMS

Length :

1 mm

Impedance @ Frequency :

33 Ohms @ 100 MHz

Base Product Number :

Z0402C

Terminal Finish :

Matte Tin (Sn)

Test Frequency :

100 MHz

Product Status :

Obsolete

Tolerance :

25 %

Product Type :

Ferrite Beads

ECCN Code :

EAR99

Impedance :

33 Ohms

HTS Code :

8504.50.80.00

Brand :

KEMET

Number of Functions :

1

Rated Current :

0.4 A

Height :

0.5 mm

Packing Method :

Tape and Reel

Width :

0.5 mm

Termination Style :

SMD/SMT

Termination :

-

Diameter :

-

Mounting Type :

Surface Mount

Product Category :

Ferrite Beads

Case Code :

0402

Filter Type :

Signal Line

Size / Dimension :

0.039" L x 0.020" W (1.00mm x 0.50mm)

Ratings :

-

Current Rating (Max) :

400mA

Minimum Operating Temperature :

- 55 C

Packaging :

MouseReel

Capacitance :

-

Product :

Ferrite Chip Beads

Reach Compliance Code :

Compliant

Construction :

Chip Bead

Type :

Multilayer Ferrite Chip Bead

Resistance :

250 mΩ

Package :

Digi-Reel?

Physical Dimension :

L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)

Number of Lines :

1

Material :

Ferrite

Output Impedance :

33 OHM Ω

Package / Case :

0402 (1005 Metric)

Operating Temperature :

-55°C ~ 125°C

Maximum Operating Temperature :

+ 125 C

DC Resistance (DCR) (Max) :

300mOhm

Height (Max) :

0.022" (0.55mm)

JESD-609 Code :

e3

Manufacturer :

KEMET

RoHS :

Details
