Introduction:
The AD9844AJST is an advanced Analog Front-End (AFE) integrated circuit (IC). This versatile device offers a comprehensive solution for high-performance imaging systems, providing exceptional image quality and flexibility. In this article, we will explore the key features and benefits of the AD9844AJST and its applications in various imaging systems.
AD9844AJST Description
The AD9844AJST is a high-performance, analog-to-digital converter (ADC) designed by Analog Devices. It is specifically designed for video signal processing applications, providing high-speed and high-resolution conversion of analog video signals to digital format. The ADC offers excellent signal-to-noise ratio and low distortion, ensuring accurate and reliable conversion of video signals. It also includes various features such as programmable gain amplifiers, on-chip reference voltage, and flexible output interfaces. The AD9844AJST is widely used in professional video equipment, broadcasting systems, and other applications that require high-quality video signal processing.
AD9844AJST Pinout
AD9844AJST 3D-Model

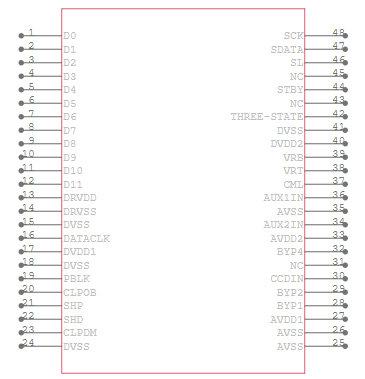

Symbol

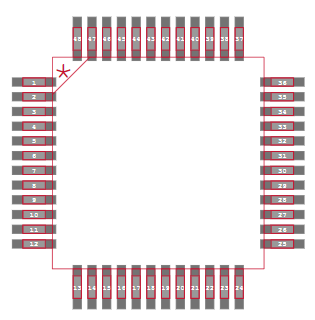

Footprint
3D-Model
AD9844AJST Applications
The AD9844AJST is commonly used in applications such as video surveillance systems, video conferencing equipment, medical imaging devices, industrial inspection systems, and high-definition video recording devices. Its high-performance ADC capabilities make it suitable for capturing and processing analog video signals in these applications.
AD9844AJST Features
20 MSPS Correlated Double Sampler (CDS)
4dB土6 dB Variable CDS Gain with 6-Bit Resolution
2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)
Low Noise Clamp Circuits
Analog Preblanking Function
12-Bit 20 MSPS A/D Converter
Auxiliary Inputs with VGA and Input Clamp
3-Wire Serial Digital Interface
3 V Single Supply Operation
Low Power: 65 mW @ 2.7 V Supply
48-Lead LQFP Package
APPLICATIONS
Digital Still Cameras
Digital Video Camcorders
PC Cameras
AD9844AJST Advantages
The AD9844AJST is a high-performance, low-power DDS (Direct Digital Synthesizer) chip that offers several advantages over other DDS devices.
Here are some of the key advantages:
High Performance:
Frequency range: 0.1 Hz to 125 MHz (internal clock) or 300 MHz (external clock)
Low phase noise: -100 dBc/Hz at 10 kHz offset
Low jitter: 1 ps RMS
High spurious-free dynamic range (SFDR): 75 dBc
Fast settling time: 100 ns
Low Power Consumption:
Typical power consumption: 75 mW
Standby mode power consumption: 50 µW
Other Advantages:
Integrated VCO: Eliminates the need for an external VCO, simplifying design and reducing cost.
Flexible interface: Supports SPI, I2C, and parallel interfaces.
Small size: Available in a 20-lead TSSOP package.
Wide operating temperature range: -40°C to +85°C.
Cost-effective: Competitive pricing compared to other high-performance DDS devices.
AD9844AJST Outline Dimension

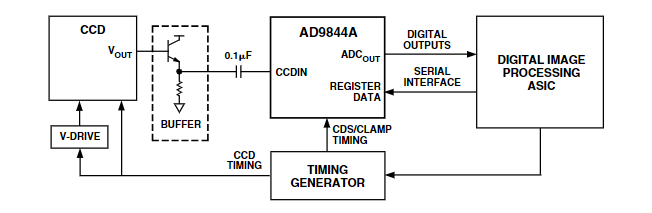

AD9844AJST System Application Diagram

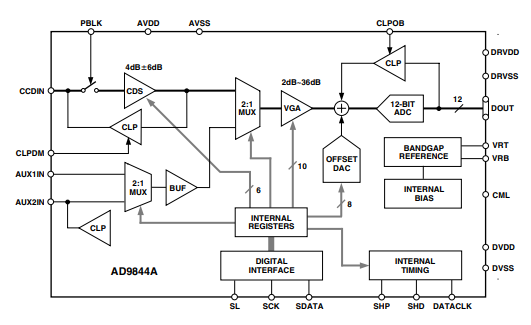

AD9844AJST Block Diagram
Datasheet PDF
Please DOWNLOAD the datasheets and manufacturer documentation for the AD9844AJST datasheet .
Specifications
Product comparison
High-Performance Imaging:
The AD9844AJST is specifically engineered to meet the demanding requirements of high-performance imaging applications. It combines multiple functions into a single chip, simplifying the design process and reducing system complexity. The IC integrates a 10-bit Analog-to-Digital Converter (ADC), a digital gain amplifier, a clamp circuit, and a programmable timing generator, offering a complete solution for capturing and processing analog video signals.
Versatile Signal Processing:
One of the standout features of the AD9844AJST is its versatility in signal processing. The integrated ADC provides high-speed conversion with excellent linearity, ensuring accurate digitization of analog video signals. The digital gain amplifier allows for precise control over signal gain, enabling optimization of image quality. Additionally, the programmable timing generator facilitates flexible synchronization of the video signal, supporting various video formats and timing requirements.
Enhanced Image Quality:
The AD9844AJST excels in delivering superior image quality. It incorporates advanced features such as correlated double sampling (CDS) and black-level clamping, which effectively remove noise and improve the signal-to-noise ratio. The IC’s low noise performance, combined with its high dynamic range, ensures that even subtle details in the captured images are preserved, resulting in exceptional image clarity and fidelity.
