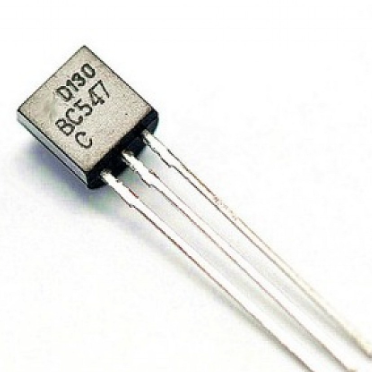

The BC547 is a general-purpose NPN bipolar junction transistor (BJT) that finds widespread use in amplifier and switching circuits. Here are some key features of the BC547:

- **Amplification:** The BC547 has a moderate current gain (hFE) ranging from 110 to 800, making it suitable for small-signal amplification.

- **Voltage and Current Ratings:** It typically operates at low voltages (up to 45V) and currents (up to 100mA), making it ideal for low-power applications.

- **Package:** The BC547 is commonly available in a TO-92 package, which is a small and easy-to-use form factor.

 Because the SS8050 is an NPN transistor, the collector and emitter will be open (reverse biased) when the base pin is held at ground and closed (forward biased) when a signal is applied to the base pin. It has a maximum gain of 400, which specifies the amplification capability of the transistor, which is generally SS8050. Because it is so high, it is typically utilized for amplification. However, the typical value of gain for a normal running collector current is 110. Because the maximum amount of current that may flow through the Collector pin is 700mA, we cannot use this transistor to drive loads that consume more than 700mA. To bias a transistor, we must feed current to the base pin; this current (IB) should be kept to a maximum of 5mA.

The S9014 is a type of bipolar junction transistor (BJT) that is commonly used for amplification and switching purposes in electronic circuits. It is a small signal NPN transistor with typical applications in low power amplification or switching circuits. The S9014 transistor has three terminals: the collector, the base, and the emitter, and it is often used in various electronic projects due to its availability and low cost.

BC547 Equivalent

The S8050 is a general-purpose NPN transistor commonly used in audio amplifier circuits, voltage regulators, and switching applications. Here are some characteristics of the S8050 transistor:

- **Current Gain:** The S8050 has a higher current gain compared to the BC547, typically ranging from 120 to 400.

- **Voltage and Current Ratings:** It can handle slightly higher voltages (up to 40V) and currents (up to 700mA) compared to the BC547.

- **Package:** Like the BC547, the S8050 is also available in a TO-92 package, ensuring easy integration into various circuit designs.

S8050 Equivalent

The S9014 is a general-purpose PNP bipolar junction transistor that is commonly used in switching and amplification applications. Here's what sets the S9014 apart:

- **Polarity:** Unlike the BC547 and S8050, which are NPN transistors, the S9014 is a PNP transistor. This means it conducts when its base is at a lower voltage than the emitter.

- **Current Gain:** The S9014 typically has a current gain ranging from 60 to 300, making it suitable for small-signal amplification.

- **Voltage and Current Ratings:** It operates at voltages up to 45V and currents up to 100mA, similar to the BC547.

S9014 Equivalent

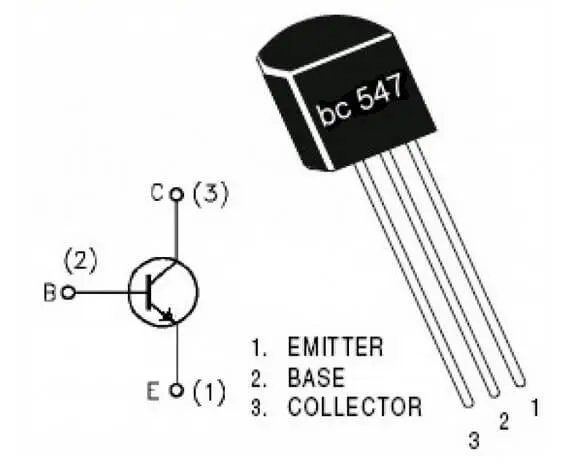

BC547 Pinout

S8050 Pinout

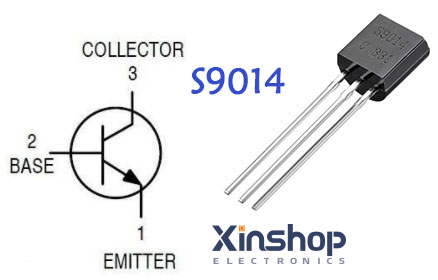

S9014 Pinout

BC547

Symbol

Footprint

3D-Model

S8050

Symbol

Footprint

3D-Model

S9014

Symbol

Footprint

3D-Model

- Type: BC547 and S8050 are NPN transistors, while S9014 is a PNP transistor.

- Applications: BC547 and S8050 are often used in similar applications due to their NPN configuration, while the S9014 is suitable for designs requiring a PNP transistor.

- Current Gain: The S8050 typically has a higher current gain compared to the BC547 and S9014.

- Voltage and Current Ratings: The voltage and current ratings vary slightly among the three transistors, with the S8050 having higher current-handling capabilities.

In conclusion, while the BC547, S8050, and S9014 transistors share some similarities in terms of voltage ratings and package type, their key differences lie in their current gains, polarities, and specific applications. Understanding these variances is crucial for selecting the right transistor for your electronic circuit design needs.
