DLW5BTM142TQ2L Datasheet,Pinout,Applications
yunying Release time：2024-03-06 Page View：246
DLW5BTM142TQ2L Description
The DLW5BTM142TQ2L is a high-performance surface-mount chip inductor suitable for a variety of electronic applications. This inductor's small size and outstanding electrical properties make it ideal for use in compact electronic devices with limited space.
The DLW5BTM142TQ2L has a ferrite core with high magnetic permeability and low core loss, which results in increased inductance and efficiency. It features a low DC resistance, allowing for efficient power transfer while reducing power losses. The inductor has a high saturation current, making it appropriate for applications with high current requirements.
This chip inductor is reflow solderable, so it may be easily integrated into surface-mount technology (SMT) assemblies. It has great solderability and can endure the high temperatures experienced while soldering.
DLW5BTM142TQ2L Equivalent Circuit

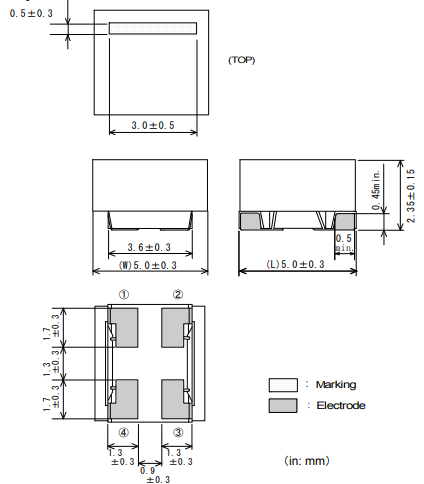

DLW5BTM142TQ2L Package
DLW5BTM142TQ2L CAD-Model
Symbol
Footprint
3D-model
![AI1JM3Z@]%36T]$3VG_B5_3](https://www.xinshop.com/upload/image/content/20240308/321d6948cd05d5052e20329f19f2bc73.png "321d6948cd05d5052e20329f19f2bc73.png")
DLW5BTM142TQ2L Alternatives
DLW5BTM142TQ2LM
DLW5BTM142TQ2LB
DLW5BTM142TQ2L Applications
Noise suppression for power line
1. Power line equipment
-DC-DC converters
-Battery chargers
2. Portable equipment
-PDAs (Personal Digital Assistants)
-Note PCs
-Printers
Specifications
- Manufacturer :
- Murata Electronics
- Product Category :
- Common Mode Chokes
- Current Rating :
- 2A
- DC Resistance (DCR) (Max) :
- 56mOhm
- ECCN Code :
- EAR99
- Factory Lead Time :
- 8 Weeks
- Filter Type :
- Power, Signal Line
- Height :
- 2.35mm
- HTS Code :
- 8504.50.80.00
- Impedance :
- 1.4kOhm
- Impedance @ Frequency :
- 1.4kOhm @ 100MHz
- Lead Free :
- Lead Free
- Lead Pitch :
- 1.7mm
- Lifecycle Status :
- IN PRODUCTION (Last Updated: 1 month ago)
- Max DC Current :
- 2A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Surface Mount
- Mounting Type :
- Surface Mount
- Number of Functions :
- 2
- Number of Lines :
- 2
- Operating Temperature :
- -40°C~105°C
- Package / Case :
- Horizontal, 6 PC Pad
- Packaging :
- Tape and Reel (TR)
- Packing Method :
- TR, Embossed, 7 Inch
- Part Status :
- Active
- REACH SVHC :
- No SVHC
- Resistance :
- 1.4kOhm
- RoHS Status :
- ROHS3 Compliant
- Series :
- DLW5B
- Size / Dimension :
- 0.197Lx0.197W 5.00mmx5.00mm
- Termination :
- SMD/SMT
- Tolerance :
- 40%
- Voltage - Rated DC :
- 50V
Datasheets
- Datasheets
- DLW5BTM142TQ2L
Product comparison
-
ImagePart NumberManufacturerToleranceVoltage - RatedProduct StatusPackage / CaseProduct CategoryView Compare
-
-
-
-
Horizontal, 4 PC Pad
Common Mode Chokes
-
40%
-
-
Horizontal, 6 PC Pad
Common Mode Chokes
-
40%
-
-
Horizontal, 6 PC Pad
Common Mode Chokes
-
40%
-
-
Horizontal, 6 PC Pad
Common Mode Chokes
