Manufacturer :

onsemi

Product Category :

Diodes - Rectifiers - Arrays

Average Rectified Current :

10A

Base Part Number :

MBR20200CT

Breakdown Voltage :

200V

Capacitance :

500pF

Contact Plating :

Tin

Current - Average Rectified (Io) :

10A

Current - Reverse Leakage @ Vr :

1mA @ 200V

Current Rating :

20A

Diode Configuration :

1 Pair Common Cathode

Diode Type :

Schottky

Element Configuration :

Common Cathode

Factory Lead Time :

15 Weeks

Forward Current :

20A

Forward Voltage :

1V

Height :

9.28mm

Lead Free :

Lead Free

Length :

10.28mm

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Max Forward Surge Current (Ifsm) :

150A

Max Operating Temperature :

175°C

Max Repetitive Reverse Voltage (Vrrm) :

200V

Max Reverse Leakage Current :

1mA

Max Reverse Voltage (DC) :

200V

Max Surge Current :

150A

Min Operating Temperature :

-65°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Through Hole

Number of Pins :

3

Operating Temperature - Junction :

-65°C~175°C

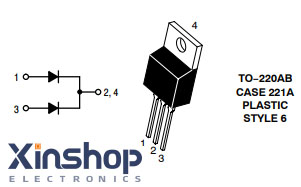

Package / Case :

TO-220-3

Packaging :

Tube

Part Status :

Active

Peak Non-Repetitive Surge Current :

150A

Peak Reverse Current :

1mA

Published :

2005

Radiation Hardening :

No

REACH SVHC :

No SVHC

Reverse Recovery Time :

40 ns

RoHS Status :

ROHS3 Compliant

Series :

SWITCHMODE™

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Supplier Device Package :

TO-220AB

Voltage - DC Reverse (Vr) (Max) :

200V

Voltage - Forward (Vf) (Max) @ If :

900mV @ 10A

Voltage - Rated DC :

200V

Weight :

4.535924g

Width :

4.82mm
