Manufacturer :

NXP Semiconductors

Product Category :

Specialized ICs

Base Part Number :

TJA1050

Data Rate :

1000 Mbps

Duplex :

Half

Factory Lead Time :

6 Weeks

Height Seated (Max) :

1.75mm

HTS Code :

8542.39.00.01

JESD-30 Code :

R-PDSO-G8

JESD-609 Code :

e4

Length :

4.9mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Surface Mount

Number of Drivers/Receivers :

1/1

Number of Functions :

1

Number of Terminations :

8

Number of Transceivers :

1

Operating Temperature (Max) :

125°C

Operating Temperature (Min) :

-40°C

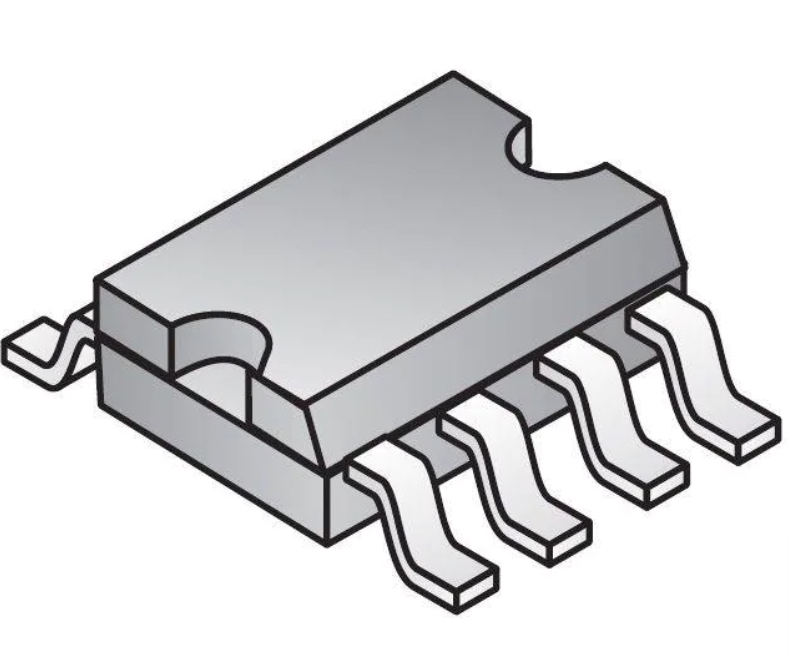

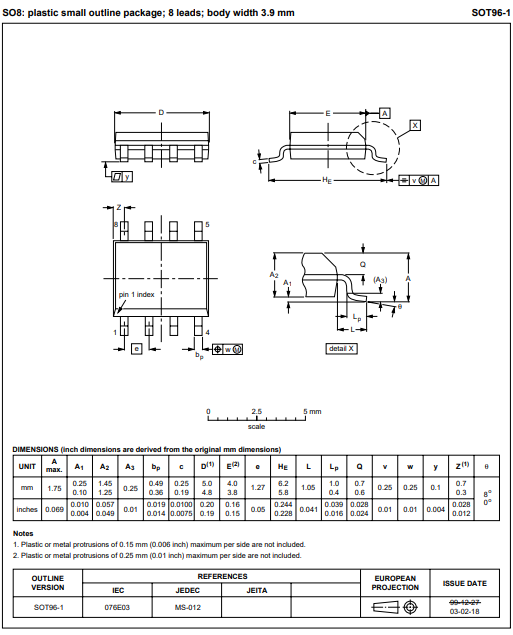

Package / Case :

8-SOIC (0.154, 3.90mm Width)

Packaging :

Tape and Reel (TR)

Part Status :

Active

Peak Reflow Temperature (Cel) :

260

Pin Count :

8

Power Supplies :

5V

Protocol :

CANbus

Published :

2002

Qualification Status :

Not Qualified

Receiver Hysteresis :

70mV

RoHS Status :

ROHS3 Compliant

Supply Current-Max :

0.075mA

Supply Voltage :

5V

Surface Mount :

yes

Temperature Grade :

Automotive

Terminal Finish :

Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

Terminal Form :

Gull wing

Terminal Pitch :

1.27mm

Terminal Position :

Dual

Time@Peak Reflow Temperature-Max (s) :

30

Type :

Transceiver

Voltage - Supply :

4.75V~5.25V

Width :

3.9mm
