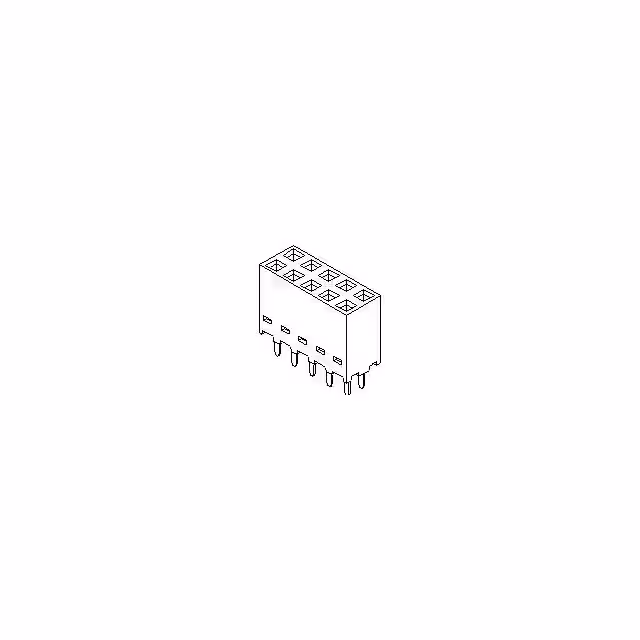

90151-2134

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Factory Lead Time :

13 Weeks

Mating Contact Row Spacing :

0.1 inch

Mounting :

Through Hole

Plating Thickness :

160u inch

Terminal Pitch :

2.54 mm

Manufacturer :

Molex

Option :

GENERAL PURPOSE

Operating Temp Range :

-55C to 125C

Product Height (mm) :

8.5(mm)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Product :

Headers

Number of Contact Rows :

2

HTS Code :

8536.69.40.40

Pbfree Code :

yes

Termination Post Length :

2.9 mm

Contact Plating :

Tin

Gender :

Receptacle

Additional Feature :

C-GRID III

JESD-609 Code :

e3

Contact Type :

-

PCB Contact Pattern :

RECTANGULAR

Row Spacing :

2.54 mm

Pitch :

2.5400 mm

Application :

Board-to-Board

Insulation Resistance :

1000000000 Ω

Product Status :

Active

Body Breadth :

0.2 inch

ECCN Code :

EAR99

Current Rating (Max) :

3/Contact(A)

Housing Material :

Polyester

Pitch (mm) :

2.54(mm)

Product Type :

Headers and Wire Housings

Insulator Color :

Black

Contact Material :

Phosphor Bronze

Product Length (mm) :

43.18(mm)

Type :

Socket Strip

Housing Color :

Black

Contact Style :

SQ PIN-SKT

Base/Housing Material :

Polyester

Reach Compliance Code :

Compliant

Product Category :

Headers and Wire Housings

Filter Feature :

No

Orientation :

Vertical

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Rated Current (Signal) :

3 A

Subcategory :

Headers and Wire Housings

Product Depth (mm) :

5.08(mm)

Reliability :

COMMERCIAL

Minimum Operating Temperature :

- 55 C

Brand :

Molex

Dielectric Withstanding Voltage :

350VDC V

Reference Standard :

UL

Voltage Rating :

350 V

Number of Rows :

2 Row

Operating Temperature :

-55 to 125 °C

Body Orientation :

Straight

Termination Method :

Solder

Termination Style :

Solder Pin

Tradename :

C-Grid

Mounting Type :

BOARD

Packaging :

Tube

Termination Type :

Solder

Current Rating :

3 A

Connector Type :

BOARD CONNECTOR

Withdrawl Force-Min :

.1946 N

Voltage Rating Max :

350V

Number of Positions :

34 Position

Number of Contacts :

34(POS)

Contact Pattern :

RECTANGULAR

Mating Contact Pitch :

0.1 inch

Series :

90151

Accessory Type :

-

Total Number of Contacts :

34

Mounting Style :

Through Hole

RoHS :

Details

Terminal Length :

0.114 inch

DIN Conformance :

No

Body Depth :

0.335 inch

Mixed Contacts :

No

Package :

Box

Number Of PCB Rows :

2

Maximum Operating Temperature :

+ 125 C

Contact Resistance :

20 mΩ

MIL Conformance :

No

UL Flammability Code :

94V-0

PCB Contact Row Spacing :

2.54 mm

IEC Conformance :

No

Body/Shell Style :

PLUG

Insertion Force-Max :

3.0024 N

Contact Gender :

Socket (Female)

Mounting Angle :

Straight
