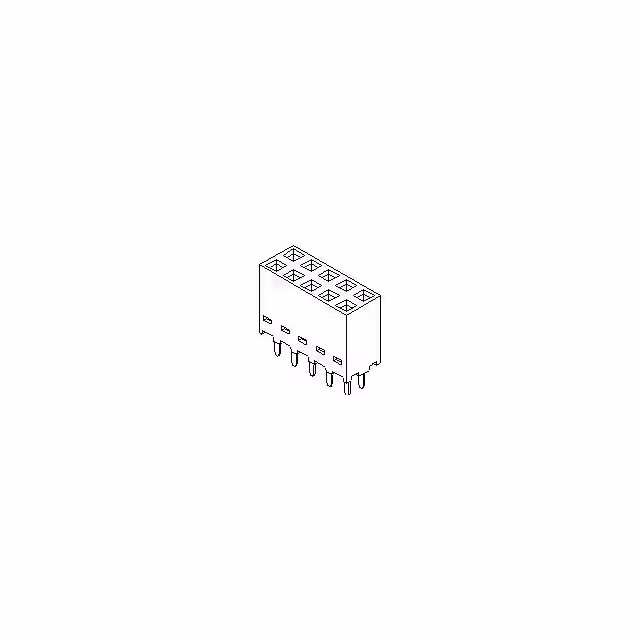

90151-2208

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Pitch (mm) :

2.54(mm)

Product Status :

Active

Base/Housing Material :

Polyester

Termination Method :

Solder

Product Type :

Headers and Wire Housings

Option :

GENERAL PURPOSE

Product Category :

Headers and Wire Housings

Type :

Socket Strip

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Termination Style :

Solder Pin

Pbfree Code :

yes

Number of Circuits :

8

Plating :

Tin

Flammability Rating :

UL 94 HB

Total Number of Contacts :

8

DIN Conformance :

No

Packaging :

Tube

Housing Color :

Black

Mounting :

Through Hole

Connector Type :

BOARD CONNECTOR

Voltage Rating :

350 V

Voltage Rating Max :

350V

Mounting Type :

BOARD

Minimum Operating Temperature :

- 55 C

RoHS :

Compliant

Manufacturer :

Molex

Lifecycle Status :

Production (Last Updated: 2 years ago)

Operating Temp Range :

-55C to 125C

Orientation :

Vertical

Contact Material :

Phosphor Bronze

Terminal Pitch :

2.54 mm

Mixed Contacts :

No

Product Depth (mm) :

5.08(mm)

Maximum Operating Temperature :

+ 125 C

Number of Rows :

2

Number of Positions :

8 Position

Current Rating :

3 A

Body Orientation :

Straight

Gender :

Receptacle

Mounting Angle :

Straight

Contact Plating :

Gold

Number of Contact Rows :

2

Pitch :

2.5400 mm

Package :

Box

Contact Gender :

FEMALE

Product :

Headers

Tradename :

C-Grid

Number of Contacts :

8(POS)

Product Height (mm) :

8.5(mm)

Subcategory :

Headers and Wire Housings

Housing Material :

Polyester

Product Length (mm) :

10.16(mm)

Brand :

Molex

Current Rating (Max) :

3/Contact(A)

IEC Conformance :

No

Series :

90151

MIL Conformance :

No

Mounting Style :

Through Hole

Filter Feature :

No

Operating Temperature :

-55 to 125 °C

Country of Origin :

SG

Termination Type :

Solder

Reach Compliance Code :

Compliant
