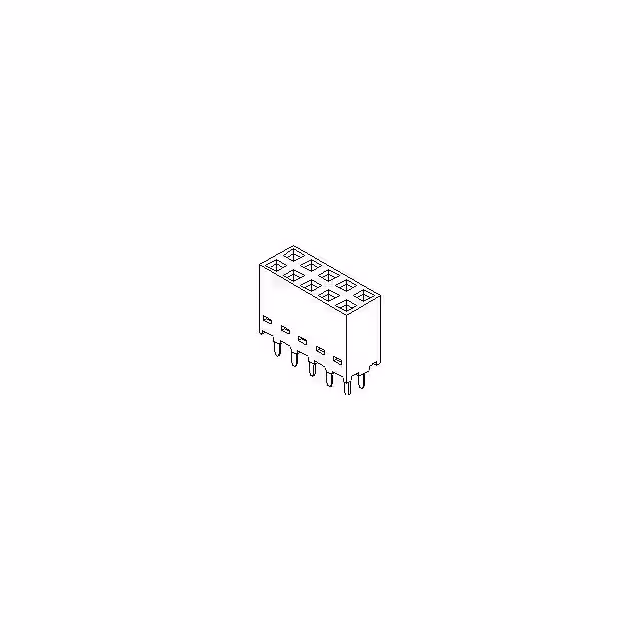

90151-2212

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Country of Origin :

SG

Product :

Headers

Current Rating (Max) :

3/Contact(A)

Housing Color :

Black

Row Spacing :

2.54 mm

Voltage Rating Max :

350V

RoHS :

Details

Lead Length :

2.9 mm

Housing Material :

Polyester

Number of Contacts :

12(POS)

Gender :

RCP

Number of Positions :

12 Position

Number of Contact Rows :

2

Pitch :

2.54 mm

Tradename :

C-Grid

Connector Type :

BOARD CONNECTOR

Option :

GENERAL PURPOSE

Product Depth (mm) :

5.08(mm)

HTS Code :

8536.69.40.40

Filter Feature :

No

Product Length (mm) :

15.24(mm)

Termination :

Through Hole

Contact Material :

Tin

Mounting Angle :

Straight

ECCN Code :

EAR99

Maximum Operating Temperature :

+ 125 C

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Termination Type :

Solder

Body Orientation :

Straight

Mixed Contacts :

No

Reach Compliance Code :

Compliant

Terminal Pitch :

2.54 mm

Product Height (mm) :

8.5(mm)

Orientation :

Vertical

Plating :

Tin

Series :

90151

MIL Conformance :

No

Contact Type :

-

Flammability Rating :

UL 94 HB

Packaging :

Tube

Pitch (mm) :

2.54(mm)

Pbfree Code :

yes

Voltage Rating :

350 V

Accessory Type :

-

IEC Conformance :

No

Mounting Type :

BOARD

Current Rating :

3 A

Contact Gender :

Socket (Female)

Termination Style :

Solder Pin

Termination Post Length :

2.9 mm

Lifecycle Status :

Production (Last Updated: 2 years ago)

Total Number of Contacts :

12

Number of Circuits :

10

Glow Wire Compliant :

Non-Compliant

Number of Rows :

2 Row

Contact Plating :

Gold

Product Status :

Active

Termination Method :

Solder

DIN Conformance :

No

Operating Temp Range :

-55C to 125C

Package :

Box

Type :

Socket

Mounting Style :

Through Hole

Minimum Operating Temperature :

- 55 C
