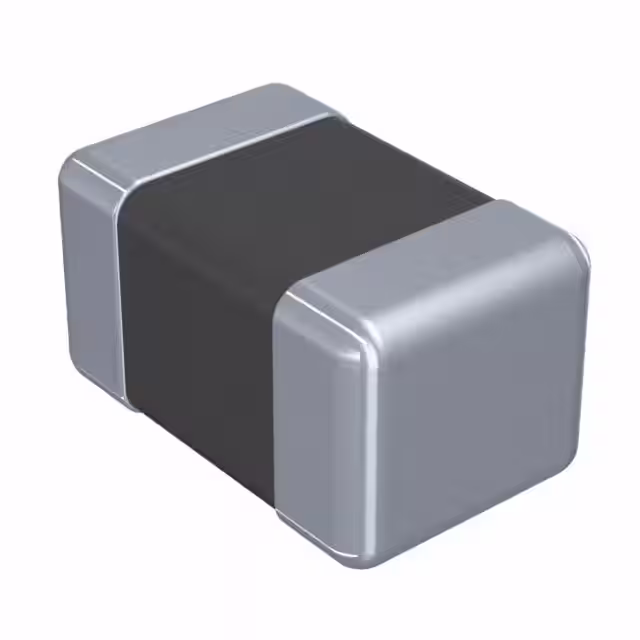

BMB2A0120AN1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Ferrite Beads and Chips

Current Rating :

300 mA

Operating Temperature :

-55°C ~ 125°C

Output Impedance :

120 OHM Ω

Lifecycle Status :

Production (Last Updated: 11 months ago)

Ratings :

--

Product Status :

Obsolete

DC Resistance (DCR) (Max) :

300 mOhm

Tolerance :

25 %

Case Code :

0805

Resistance :

600 mΩ

Rated Current :

0.3 A

Current Rating (Max) :

300mA

REACH SVHC :

Unknown

RoHS :

Compliant

Lead/Base Style :

SMD/SMT

Construction :

Multilayer Chip

Case Code (Metric) :

2012

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 11 months ago)

ELV :

Compliant

Filter Type :

FERRITE CHIP

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Packaging :

Tape and Reel (TR)

Case Code (Imperial) :

0805

Weight :

5.499807 mg

Reach Compliance Code :

Compliant

Termination :

SMD/SMT

Height :

0.9 mm

Mount :

Surface Mount

Lead Free :

Lead Free

Size / Dimension :

0.079 L x 0.047 W (2.00mm x 1.20mm)

Max DC Current :

300 mA

Package / Case :

0805 (2012 Metric)

Length :

2 mm

Impedance :

120 Ω

Test Frequency :

100 MHz

DC Resistance (DCR) :

300 mΩ

Impedance @ Frequency :

120 Ohms @ 100MHz

Schedule B :

8504500000, 8504500000/8504500000/8504500000/8504500000/8504500000

Number of Functions :

1

Width :

1.2 mm

Max Current Rating :

300 mA

Material :

Ferrite

Height (Max) :

0.043 (1.10mm)

Mounting Type :

Surface Mount

Number of Pins :

2

Min Operating Temperature :

-55 °C

Physical Dimension :

L2.0XB1.2XH0.9 (mm)/L0.079XB0.047XH0.035 (inch)

Number of Lines :

1

Radiation Hardening :

No

Depth :

1.2 mm

Max Operating Temperature :

125 °C

Series :

BMB-A
