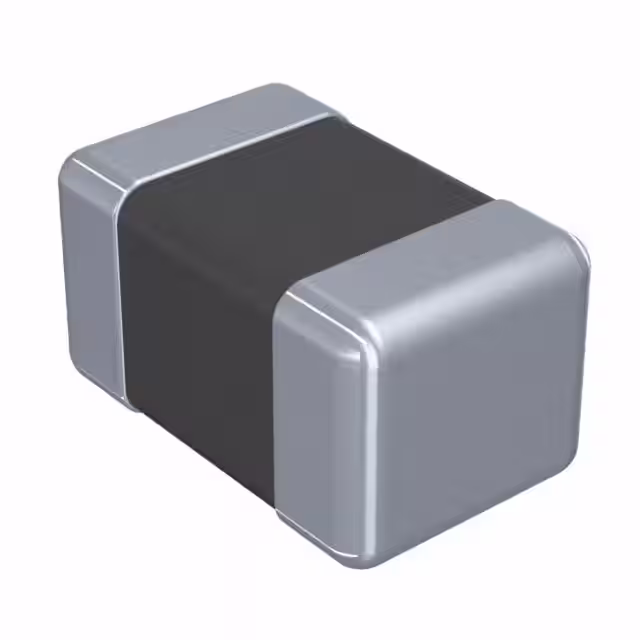

BMB2A0150AN1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Ferrite Beads and Chips

Length :

2 mm

Number of Functions :

1

Brand :

TE Connectivity / Holsworthy

Qualification :

-

Output Impedance :

150 OHM Ω

Type :

Multilayer Chip Bead

Package / Case :

0805 (2012 Metric)

Operating Temperature :

-55°C ~ 125°C

Mounting Type :

Surface Mount

Product Length :

2mm

DC Current :

300(mA)

Case Style :

0805

Product Diameter (mm) :

Not Required(mm)

Tolerance (+ or -) :

25%

DC Resistance :

0.3(ohm)

Product Status :

Obsolete

Filter Type :

FERRITE CHIP

Impedance @ Frequency :

150 Ohms @ 100MHz

Impedance :

150(ohm)

Material :

Ferrite

Product :

Ferrite Chip Beads

Size / Dimension :

0.079 L x 0.047 W (2.00mm x 1.20mm)

Packaging :

Tape and Reel

Product Height :

0.9mm

Impedance Tolerance :

± 25%

Width :

1.2 mm

Physical Dimension :

L2.0XB1.2XH0.9 (mm)/L0.079XB0.047XH0.035 (inch)

Minimum Operating Temperature :

- 55 C

Diameter :

-

Series :

BMB-A

Height :

0.9 mm

Product Type :

Ferrite Beads

Product Category :

Ferrite Beads

Termination :

-

DC Resistance (DCR) (Max) :

300 mOhm

Construction :

Multilayer Chip

Base Product Number :

BMB2

Product Width :

1.2mm

Number of Lines :

1

Tolerance :

25 %

Current Rating (Max) :

300mA

Maximum Operating Temperature :

+ 125 C

Reach Compliance Code :

Unknown

Product Length (mm) :

2.2(mm)

Operating Temp Range :

-55C to 125C

Product Depth (mm) :

1.4(mm)

Case Code :

0805

Product Height (mm) :

1.1(mm)

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Rated Current :

0.3 A

RoHS :

Details

Capacitance :

-

Height (Max) :

0.043 (1.10mm)

Termination Style :

SMD/SMT

Ratings :

--

Test Frequency :

100(MHz)
