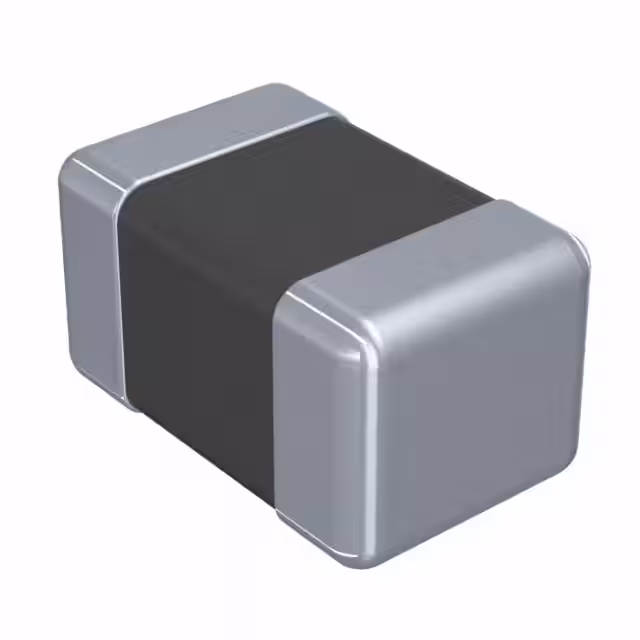

BMB2A0120AN4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Ferrite Beads and Chips

Product Length :

2.2

Number of Functions :

1

Tolerance (+ or -) :

25%

Width :

1.2 mm

Height (Max) :

0.043 (1.10mm)

Product Status :

Obsolete

Height :

0.9 mm

Number of Lines :

1

Physical Dimension :

L2.0XB1.2XH0.9 (mm)/L0.079XB0.047XH0.035 (inch)

Product Width :

1.4 mm

DC Current :

300(mA)

Construction :

Multilayer Chip

Impedance :

120 Ohm

Series :

BMB-A

Filter Type :

FERRITE CHIP

Case Code :

0805

DC Resistance :

0.3(ohm)

Factory Lead Time :

13 Weeks, 6 Days

Current Rating (Max) :

300mA

Product Diameter (mm) :

Not Required(mm)

DC Resistance (DCR) (Max) :

300 mOhm

Case Style :

0805

Operating Temperature :

-55°C ~ 125°C

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Product Length (mm) :

2.2(mm)

Length :

2 mm

Ratings :

--

Test Frequency :

100(MHz)

Product Depth (mm) :

1.4(mm)

Operating Temp Range :

-55C to 125C

Product Height (mm) :

1.1(mm)

Impedance Tolerance :

25

Output Impedance :

120 OHM Ω

Rated Current :

0.3 A

Mounting Type :

Surface Mount

Size / Dimension :

0.079 L x 0.047 W (2.00mm x 1.20mm)

Reach Compliance Code :

Unknown

Impedance @ Frequency :

120 Ohms @ 100MHz

Material :

Ferrite

Package / Case :

0805 (2012 Metric)

Moisture Sensitivity Level (MSL) :

--

Base Product Number :

BMB2

Packaging :

Tape and Reel (TR)
