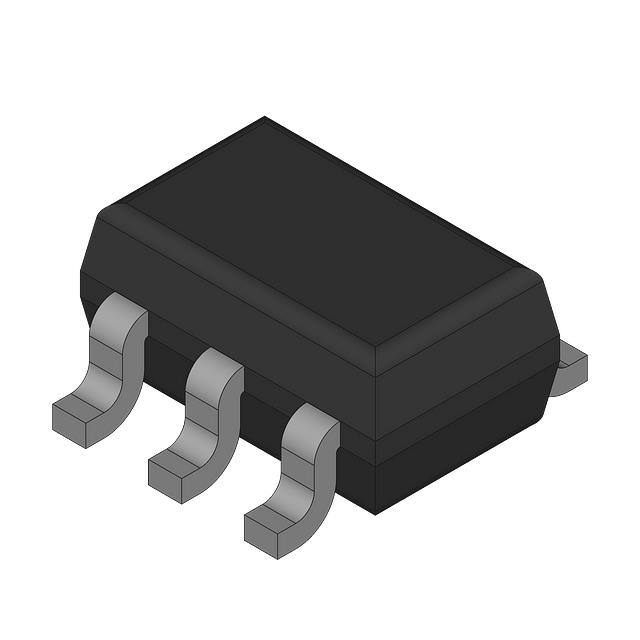

BSD214SNH6327

Manufacturer :

Infineon Technologies

Product Category :

Transistors - FETs, MOSFETs - Single

Width :

1.25 mm

Subcategory :

MOSFETs

Maximum Operating Temperature :

+ 150 C

Rds On (Max) @ Id, Vgs :

140mΩ @ 1.5A,4.5V

Packaging :

Tape and Reel (TR)

Manufacturer :

Infineon

Product Category :

MOSFET

Number of Channels :

1 Channel

Brand :

Infineon Technologies

Mounting Style :

SMD/SMT

Power Dissipation-Max (Ta=25°C) :

500mW

Height :

0.9 mm

Minimum Operating Temperature :

- 55 C

Rds On Max :

140 mΩ

Transistor Type :

1 N-Channel

Channel Mode :

Enhancement

Package / Case :

PG-SOT363-6

Vgs(th) (Max) @ Id :

1.2V @ 3.7uA

Technology :

Si

FET Type :

N Channel

RoHS :

Compliant

Length :

2 mm

Continuous Drain Current (Id) @ 25°C :

1.5A

RoHS Status :

RoHS Compliant

Continuous Drain Current (ID) :

1.5 A

Transistor Polarity :

N-Channel

Rise Time :

7.8 ns

Product Type :

MOSFET

Drain to Source Voltage (Vdss) :

20V

Mount :

Surface Mount

Series :

BSD214

Configuration :

Single

Input Capacitance :

143 pF

Max Power Dissipation :

500 mW
