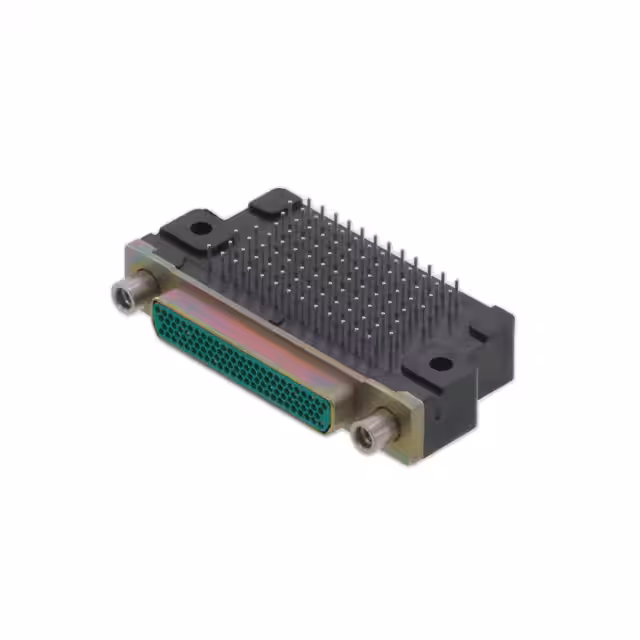

DCCM100PCBRP
Or copy the link below:
- Mfr.Part #
- DCCM100PCBRP
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN MICRO-D PLUG 100P R/A SLDR
- Stock
- 25
- In Stock ：
- 25
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Number of Rows :
- 4
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Body Length or Diameter :
- 2.175 inch
- Additional Feature :
- ENVIRONMENTAL CLASS
- Number Of PCB Rows :
- 8
- Feature :
- Shielded
- Shell Material, Finish :
- Aluminum Alloy, Yellow Chromate Plated Cadmium
- Packaging :
- Bulk
- PCB Contact Pattern :
- STAGGERED
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Contact Pitch :
- 0.05 inch
- Insertion Force-Max :
- 1.668 N
- Reliability :
- COMMERCIAL
- Mating Contact Row Spacing :
- 0.05 inch
- Contact Resistance :
- 8mOhm
- Shell Finish :
- CADMIUM/YELLOW CHROMATE
- Contact Type :
- Signal
- Insulation Material :
- GLASS FILLED DIALLYL PHTHALATE
- Contact Finish :
- Gold
- Total Number of Contacts :
- 100
- Backset Spacing :
- 0.200 (5.08mm)
- Body Depth :
- 1 inch
- Mounting Option 2 :
- JACKPOST
- Termination :
- Solder
- Current Rating (Amps) :
- 3A
- Number of Positions :
- 100
- Reference Standard :
- UL
- Mounting Type :
- Through Hole, Right Angle
- Connector Type :
- Plug, Male Pins
- Connector Style :
- D-Type, Micro-D
- Flange Feature :
- Mating Side, Female Screwlock
- Material Flammability Rating :
- UL94 V-0
- Series :
- Dura-Con™
- Withdrawl Force-Min :
- .139 N
- Factory Lead Time :
- 31 Weeks
- Length - Termination :
- 0.109 inch
- Operating Temperature :
- -55°C~135°C
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Insulation Resistance :
- 5000000000Ohm
- Dielectric Material :
- Diallyl Phthalate (DAP), Glass Filled
- Contact Material :
- COPPER ALLOY
- Plating Thickness :
- 50μin
- RoHS Status :
- Non-RoHS Compliant
- Dielectric Withstanding Voltage :
- 600VAC V
- Contact Form :
- Machined
- Datasheets
- DCCM100PCBRP
Dura-Con™ Series D-Type, Micro-D Plug, Male Pins 100-Position Signal Solder 0.050 Pitch x 0.043 Row to Row Through Hole, Right Angle Copper Alloy Gold Aluminum Alloy, Yellow Chromate Plated Cadmium
DCCM100PCBRP Overview
It comes in Plug, Male Pins packaging.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Dura-Con™ Series.Moreover, there are a number of other features, including ENVIRONMENTAL CLASS, to name just a few.In many ways, its Shielded feature makes it more powerful.In this case, the device operates at -55°C~135°C Operating Temperature.
DCCM100PCBRP Features
Dura-Con™ series
DCCM100PCBRP Applications
There are a lot of Cinch Connectivity Solutions
DCCM100PCBRP D-Sub Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
