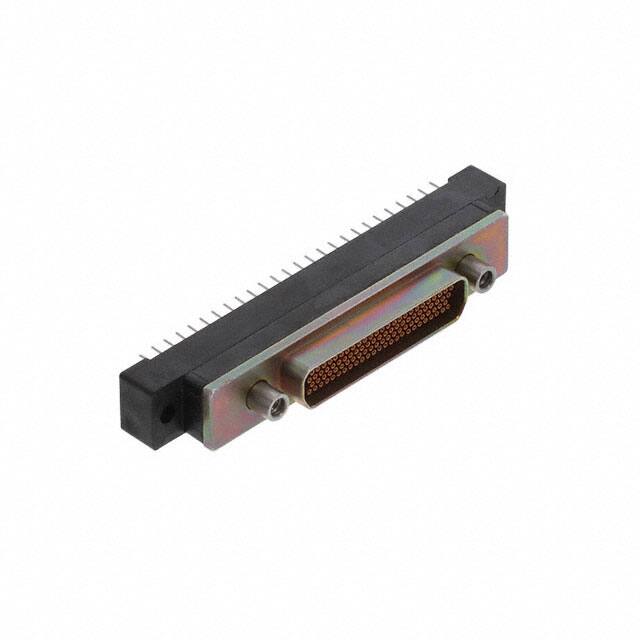

DCCM100SBSPN
Or copy the link below:
- Mfr.Part #
- DCCM100SBSPN
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN MICRO-D RCPT 100P VERT SLDR
- Stock
- 12,877
- In Stock ：
- 12,877
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Total Number of Contacts :
- 100
- Dielectric Withstanding Voltage :
- 600VAC V
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Contact Material :
- COPPER ALLOY
- Number Of PCB Rows :
- 4
- Connector Type :
- Receptacle, Female Sockets
- Feature :
- Shielded
- Body Depth :
- 0.55 inch
- PCB Contact Pattern :
- STAGGERED
- Mating Contact Row Spacing :
- 0.05 inch
- Factory Lead Time :
- 31 Weeks
- Shell Material, Finish :
- Aluminum Alloy, Nickel Plated, Electroless
- Dielectric Material :
- Diallyl Phthalate (DAP), Glass Filled
- Contact Finish :
- Gold
- Flange Feature :
- Mating Side, Female Screwlock
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 3A
- Connector Style :
- D-Type, Micro-D
- Mounting Option 2 :
- JACKPOST
- Contact Resistance :
- 8mOhm
- Insulation Material :
- GLASS FILLED DIALLYL PHTHALATE
- Contact Finish Thickness :
- 50.0μin 1.27μm
- RoHS Status :
- Non-RoHS Compliant
- Insulation Resistance :
- 5000000000Ohm
- Withdrawl Force-Min :
- .139 N
- Contact Form :
- Machined
- Operating Temperature :
- -55°C~135°C
- Mounting Type :
- Through Hole
- Reference Standard :
- UL
- Number of Rows :
- 4
- Plating Thickness :
- 50μin
- Mating Contact Pitch :
- 0.05 inch
- Body Length or Diameter :
- 3.07 inch
- Additional Feature :
- ENVIRONMENTAL CLASS
- Number of Positions :
- 100
- Packaging :
- Bulk
- Insertion Force-Max :
- 1.668 N
- Reliability :
- COMMERCIAL
- Length - Termination :
- 0.109 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Contact Type :
- Signal
- Series :
- Dura-Con™
- Datasheets
- DCCM100SBSPN
Dura-Con™ Series D-Type, Micro-D Receptacle, Female Sockets 100-Position Signal Solder 0.050 Pitch x 0.043 Row to Row Through Hole Copper Alloy Gold Aluminum Alloy, Nickel Plated, Electroless
DCCM100SBSPN Overview
The product is packaged in Receptacle, Female Sockets.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Dura-Con™ Series, it can be found in this category.There are also other features such as ENVIRONMENTAL CLASS, to name only a few.With its Shielded feature, it is more powerful in many ways.The device is operating at -55°C~135°C Operating Temperature.
DCCM100SBSPN Features
Dura-Con™ series
DCCM100SBSPN Applications
There are a lot of Cinch Connectivity Solutions
DCCM100SBSPN D-Sub Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
