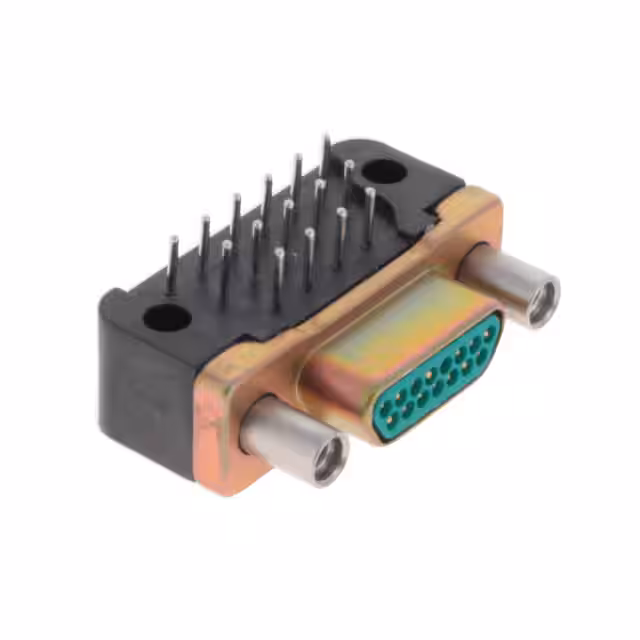

DCCM15PCBRP
Or copy the link below:
- Mfr.Part #
- DCCM15PCBRP
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN MICRO-D PLUG 15POS R/A SLDR
- Stock
- 142
- In Stock ：
- 142
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- Number of Positions :
- 15
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shell Material, Finish :
- Aluminum Alloy, Yellow Chromate Plated Cadmium
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Mating Contact Row Spacing :
- 0.05 inch
- Body Breadth :
- 0.308 inch
- Insertion Force-Max :
- 1.668 N
- Contact Resistance :
- 8mOhm
- Additional Feature :
- ENVIRONMENTAL CLASS
- PCB Contact Pattern :
- STAGGERED
- Backset Spacing :
- 0.130 (3.30mm)
- Connector Style :
- D-Type, Micro-D
- Contact Form :
- Machined
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Total Number of Contacts :
- 15
- Insulation Material :
- GLASS FILLED DIALLYL PHTHALATE
- RoHS Status :
- Non-RoHS Compliant
- Reliability :
- COMMERCIAL
- Withdrawl Force-Min :
- .139 N
- Dielectric Withstanding Voltage :
- 600VAC V
- Factory Lead Time :
- 31 Weeks
- Contact Finish :
- Gold
- Mating Contact Pitch :
- 0.05 inch
- Connector Type :
- Plug, Male Pins
- Current Rating (Amps) :
- 3A
- Mounting Option 2 :
- JACKPOST
- Termination :
- Solder
- Feature :
- Shielded
- Operating Temperature :
- -55°C~135°C
- Material Flammability Rating :
- UL94 V-0
- Length - Termination :
- 0.109 inch
- Flange Feature :
- Mating Side, Female Screwlock
- Mounting Type :
- Through Hole, Right Angle
- Packaging :
- Bulk
- Dielectric Material :
- Diallyl Phthalate (DAP), Glass Filled
- Shell Finish :
- Nickel
- Contact Material :
- COPPER ALLOY
- Reference Standard :
- UL
- Body Length or Diameter :
- 0.935 inch
- Number Of PCB Rows :
- 3
- Contact Type :
- Signal
- Series :
- Dura-Con™
- Insulation Resistance :
- 5000000000Ohm
- Plating Thickness :
- 50μin
- Number of Rows :
- 2
- Datasheets
- DCCM15PCBRP
Dura-Con™ Series D-Type, Micro-D Plug, Male Pins 15-Position Signal Solder 0.050 Pitch x 0.043 Row to Row Through Hole, Right Angle Copper Alloy Gold Aluminum Alloy, Yellow Chromate Plated Cadmium
DCCM15PCBRP Overview
A Plug, Male Pins package is included with it.Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Dura-Con™ Series.Furthermore, there are other features such as ENVIRONMENTAL CLASS, to name a few.In many ways, Shielded makes it more powerful.Operating temperature is set to -55°C~135°C.
DCCM15PCBRP Features
Dura-Con™ series
DCCM15PCBRP Applications
There are a lot of Cinch Connectivity Solutions
DCCM15PCBRP D-Sub Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
