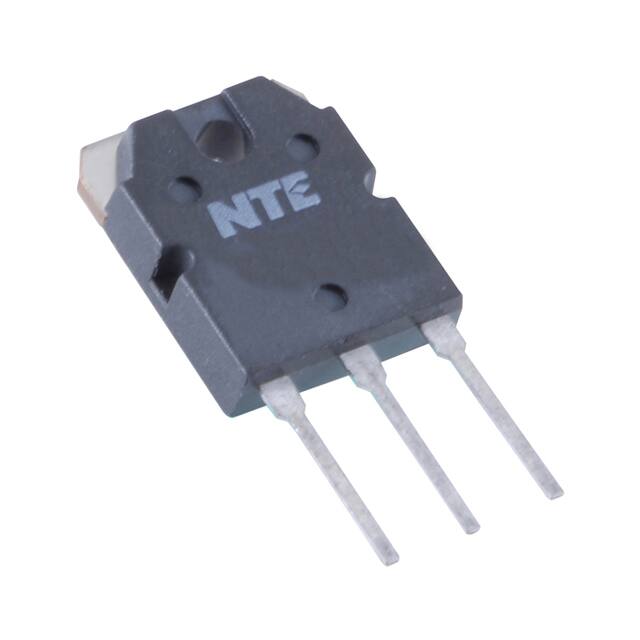

NTE215

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

Power Dissipation-Max (Abs) :

60 W

Terminal Form :

THROUGH-HOLE

Frequency - Transition :

20MHz

Transistor Type :

NPN - Darlington

HTS Code :

8541.29.00.95

DC Current Gain-Min (hFE) :

1500

Current - Collector (Ic) (Max) :

8 A

Collector Current-Max (IC) :

8 A

Series :

-

Operating Temperature :

150°C (TJ)

Reach Compliance Code :

Unknown

Pin Count :

2

Subcategory :

Other Transistors

Mounting Type :

Through Hole

Terminal Position :

Single

Transistor Element Material :

SILICON

Voltage - Collector Emitter Breakdown (Max) :

100 V

Product Status :

Active

Manufacturer :

NTE Electronics

Collector-Emitter Voltage-Max :

100 V

Case Connection :

COLLECTOR

Package Shape :

RECTANGULAR

Transistor Application :

SWITCHING

Number of Terminals :

3

Polarity/Channel Type :

NPN

JESD-30 Code :

R-PSFM-T3

Power Dissipation Ambient-Max :

60 W

Package :

Bag

Qualification Status :

Not Qualified

Current - Collector Cutoff (Max) :

100µA (ICBO)

Configuration :

DARLINGTON WITH BUILT-IN DIODE AND RESISTOR

Package / Case :

TO-3P-3, SC-65-3

Supplier Device Package :

TO-3P

DC Current Gain (hFE) (Min) @ Ic, Vce :

1500 @ 4A, 3V

Number of Elements :

1

Vce Saturation (Max) @ Ib, Ic :

1.5V @ 8mA, 4A

Power - Max :

2.5 W

Surface Mount :

No

ECCN Code :

EAR99
