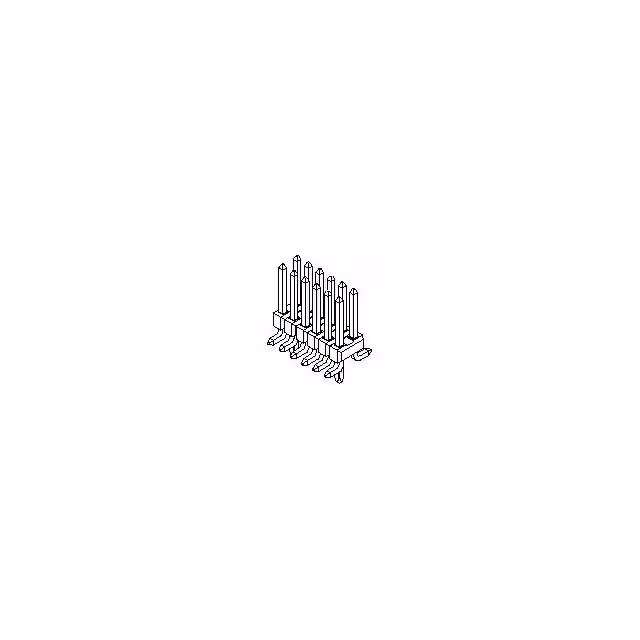

15-91-1041

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Product Length (mm) :

5.08(mm)

Contact Pattern :

RECTANGULAR

Minimum Operating Temperature :

- 40 C

Termination Method :

Solder

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Positions :

4 Position

Flammability Rating :

UL 94 V-0

Maximum Operating Temperature :

+ 105 C

Plating Thickness :

150u inch

Current Rating (Max) :

3/Contact(A)

Option :

GENERAL PURPOSE

Connector Type :

BOARD CONNECTOR

Mounting Angle :

Straight

UL Flammability Code :

94V-0

Product Height (mm) :

9.66(mm)

MIL Conformance :

No

Total Number of Contacts :

4

Product Type :

Headers and Wire Housings

Pbfree Code :

yes

Contact Resistance :

15 mΩ

Manufacturer :

Molex

Rated Current (Signal) :

2.5 A

ECCN Code :

EAR99

Pitch (mm) :

2.54(mm)

Product :

Headers

Contact Plating :

Tin

HTS Code :

8536.69.40.40

Housing Material :

Thermoplastic (TP)

Body Orientation :

Straight

Product Depth (mm) :

5.08(mm)

Housing Color :

Black

Contact Gender :

Male

Mounting Type :

BOARD

Type :

Unshrouded Header

Mating Contact Row Spacing :

0.1 inch

Termination Type :

Surface Mount

Packaging :

Bag

Series :

71308

Mounting Style :

Surface Mount

Mating Contact Pitch :

0.1 inch

Number Of PCB Rows :

2

Tradename :

C-Grid

Contact Material :

Phosphor Bronze

Body/Shell Style :

Receptacle

Gender :

HDR

Additional Feature :

C-Grid

IEC Conformance :

No

Contact Resistance Max :

15(mohm)

Voltage Rating :

250 V

Number of Contacts :

4(POS)

Number of Rows :

2 Row

Body Breadth :

0.2 inch

Current Rating :

3 A

RoHS :

Details

Reliability :

COMMERCIAL

Operating Temp Range :

-40C to 105C

DIN Conformance :

No

Board Mounting Option :

SOLDER HOLDING POSTS

Termination Style :

Solder

Product Category :

Headers and Wire Housings

PCB Contact Pattern :

RECTANGULAR

Reach Compliance Code :

Compliant

Insulator Color :

Black

Filter Feature :

No

Body Depth :

0.09 inch

Pitch :

2.54 mm

Product Status :

Active

Terminal Pitch :

2.54 mm

Brand :

Molex

Subcategory :

Headers and Wire Housings

Mixed Contacts :

No

Reference Standard :

UL, CSA

Number of Contact Rows :

2

Voltage Rating Max :

250V

Package :

Box

Contact Style :

SQ PIN-SKT
