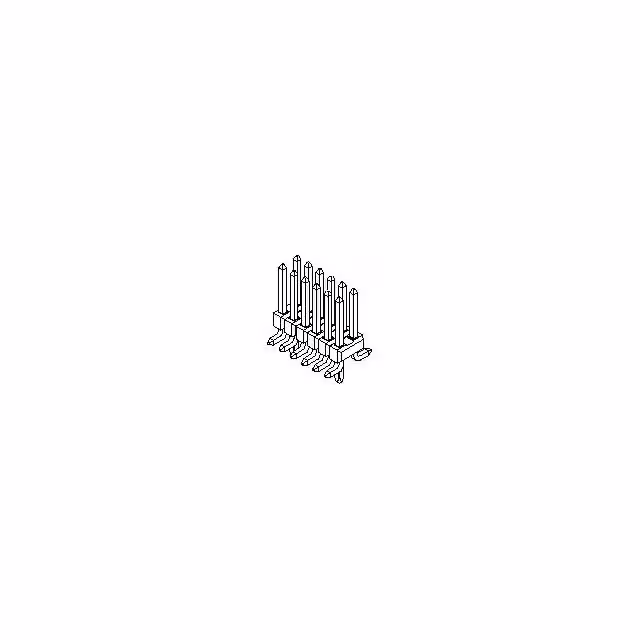

15-91-1103

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Body Depth :

0.09 inch

IEC Conformance :

No

Subcategory :

Headers and Wire Housings

Number Of PCB Rows :

2

Pbfree Code :

yes

PCB Contact Pattern :

RECTANGULAR

Termination Method :

Solder

Board Mounting Option :

SOLDER HOLDING POSTS

Housing Color :

Black

Series :

*

Current Rating (Max) :

3/Contact(A)

Connector Type :

BOARD CONNECTOR

Gender :

HDR

Operating Temp Range :

-40C to 105C

Rated Current (Signal) :

2.5 A

UL Flammability Code :

94V-0

Mating Contact Row Spacing :

0.1 inch

Insulator Color :

Black

Mounting Style :

Surface Mount

Body/Shell Style :

Receptacle

Contact Resistance :

15 mΩ

Total Number of Contacts :

10

Contact Style :

SQ PIN-SKT

Number of Positions :

10 Position

Current Rating :

3 A

Option :

GENERAL PURPOSE

Contact Resistance Max :

15(mohm)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Voltage Rating Max :

250V

Contact Plating :

Gold Over Nickel

Mating Contact Pitch :

0.1 inch

Contact Pattern :

RECTANGULAR

Filter Feature :

No

Contact Material :

Phosphor Bronze

Reference Standard :

UL, CSA

Terminal Pitch :

2.54 mm

Mixed Contacts :

No

Type :

Unshrouded Header

HTS Code :

8536.69.40.40

DIN Conformance :

No

Body Orientation :

Straight

Termination Style :

Solder

Reach Compliance Code :

Compliant

Contact Gender :

Pin (Male)

Body Breadth :

0.2 inch

Product Type :

Headers and Wire Housings

Plating Thickness :

30u inch

Contact Type :

-

Flammability Rating :

UL 94 V-0

MIL Conformance :

No

RoHS :

Details

Housing Material :

Liquid Crystal Polymer (LCP)

Packaging :

Tube

Additional Feature :

C-Grid

Product Category :

Headers and Wire Housings

Pitch :

2.54 mm

Mating Post Length :

6.1 mm

Brand :

Molex

Product Status :

Active

Mounting Type :

BOARD

Number of Rows :

2 Row

Number of Contacts :

10(POS)

Package :

Box

Manufacturer :

Molex

ECCN Code :

EAR99

Number of Contact Rows :

2

Row Spacing :

2.54 mm

Maximum Operating Temperature :

+ 105 C

Product Height (mm) :

9.66(mm)

Product Length (mm) :

12.7(mm)

Product Depth (mm) :

6.99(mm)

Reliability :

COMMERCIAL

Termination Type :

Surface Mount

Tradename :

C-Grid

Mounting Angle :

Straight

Product :

Headers

Minimum Operating Temperature :

- 40 C

Accessory Type :

-

Pitch (mm) :

2.54(mm)

Voltage Rating :

250 V
