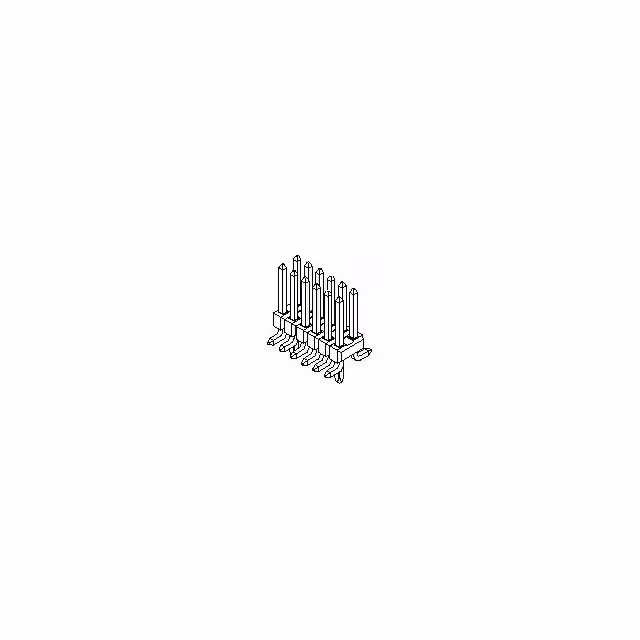

15-91-1142

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Package :

Box

Subcategory :

Headers and Wire Housings

Mixed Contacts :

No

Mount :

Through Hole

Number of Rows :

2

DIN Conformance :

No

Contact Material :

Phosphor Bronze

Body/Shell Style :

Receptacle

Maximum Operating Temperature :

+ 105 C

Termination Style :

Solder

Number of Circuits :

14

Mounting Style :

Surface Mount

Contact Resistance Max :

15(mohm)

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Halogen Free :

Low Halogen

Minimum Operating Temperature :

- 40 C

Gender :

Header

Termination :

SMD/SMT

Housing Color :

Black

Contact Style :

SQ PIN-SKT

Pitch :

2.5400 mm

Number of Contacts :

8

Manufacturer :

Molex

Row Spacing :

2.54 mm

Voltage Rating Max :

250V

Option :

GENERAL PURPOSE

Pbfree Code :

yes

Max Operating Temperature :

105 °C

Mating Contact Row Spacing :

0.1 inch

Product Category :

Headers and Wire Housings

Termination Method :

Solder

UL Flammability Code :

94V-0

Reliability :

COMMERCIAL

Product Status :

Active

Plating Thickness :

15u inch

Pitch (mm) :

2.54(mm)

HTS Code :

8536.69.40.40

IEC Conformance :

No

Reference Standard :

UL, CSA

Product :

Headers

Base/Housing Material :

LCP (Liquid Crystal Polymer)

Material :

Bronze

Contact Type :

-

Voltage Rating :

250 V

Body Breadth :

0.2 inch

Type :

Unshrouded Header

Reach Compliance Code :

Compliant

Contact Plating :

Gold

Board Mounting Option :

SOLDER HOLDING POSTS

ELV :

Compliant

Tradename :

C-Grid

Min Operating Temperature :

-40 °C

Operating Temperature :

-40 to 105 °C

Flammability Rating :

UL94 V-0

Terminal Pitch :

2.54 mm

Lifecycle Status :

Production (Last Updated: 2 years ago)

Additional Feature :

C-Grid

Body Depth :

0.09 inch

Current Rating :

3 A

Application :

Board-to-Board

Contact Gender :

Pin (Male)

Current Rating (Max) :

3/Contact(A)

Orientation :

Vertical

Glow Wire Compliant :

Non-Compliant

Housing Material :

Thermoplastic

Max Voltage Rating (AC) :

600 V

ECCN Code :

EAR99

Insulator Color :

Black

Mounting Type :

BOARD

Mounting :

Surface Mount

PCB Contact Pattern :

RECTANGULAR

Flammability :

94V-0

Number Of PCB Rows :

2

Contact Resistance :

10 MΩ

Country of Origin :

US

Operating Temp Range :

-40C to 105C

Brand :

Molex

Product Height (mm) :

9.66(mm)

Body Orientation :

Straight

Contact Pattern :

RECTANGULAR

Plating :

Tin

Number of Contact Rows :

2

Product Depth (mm) :

6.99(mm)

Product Type :

Headers and Wire Housings

Mating Contact Pitch :

0.1 inch

Product Length :

17.78 mm

Filter Feature :

No

Series :

71308

Rated Current (Signal) :

2.5 A

Accessory Type :

-

MIL Conformance :

No

Packaging :

Tube

Termination Type :

Surface Mount

Product Length (mm) :

17.78(mm)

Connector Type :

BOARD CONNECTOR

Total Number of Contacts :

14

RoHS :

Compliant

Number of Positions :

14

Mounting Angle :

Straight

Mating Post Length :

6.1 mm
