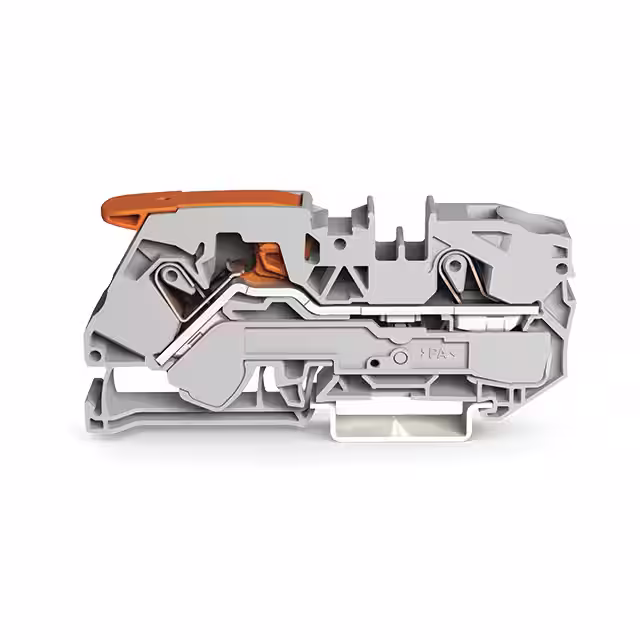

2116-1201

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Terminal - Width :

12.0mm

Pitch :

12mm

Package :

Box

Maximum Operating Temperature :

+105°C

Manufacturer :

Wago

Voltage - UL :

600V

Current - IEC :

90 A

Current - UL :

85 A

Type :

Standard Block

Wire Gauge or Range - AWG :

6-20 AWG

Series :

2116

Product Status :

Active

Wire Gauge or Range - mm² :

0.5-16mm²

Color :

Gray

Approvals :

CSA, cURus

Rated Voltage :

800V

Standards Met :

CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR

Disconnect Type :

-

Voltage Rating :

800 V

Fuse Type :

-

Material Flammability Rating :

UL94 V-0

Stripping Length :

18mm ~ 20mm

Minimum Operating Temperature :

-35°C

Number of Positions :

2

Termination Style :

Push In, Spring

Material - Insulation :

Polyamide (PA66), Nylon 6/6

RoHS :

yes

Current Rating :

90A

Number of Levels :

Single

Termination Method :

Clamp

Voltage - IEC :

800V

Features :

-

Number of Circuits :

1

Mounting Type :

DIN Rail

Rated Current :

76A
