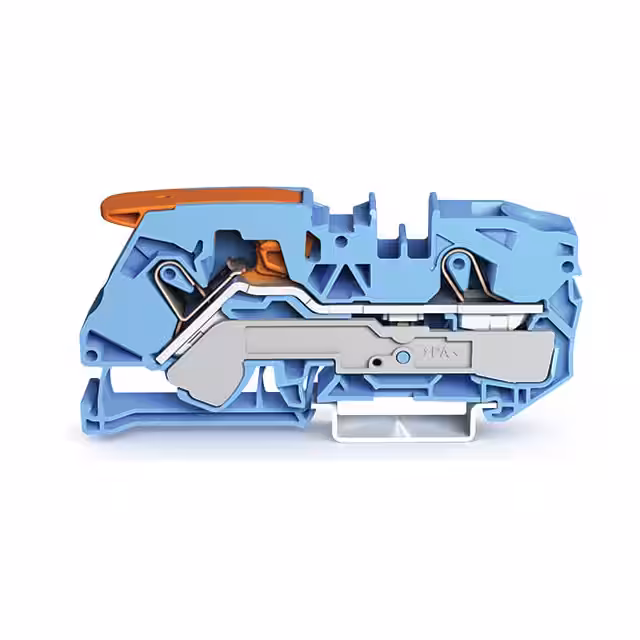

2116-1204

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Disconnect Type :

-

Minimum Operating Temperature :

-35°C

Features :

-

Wire Gauge or Range - AWG :

6-20 AWG

Mounting Type :

DIN Rail

Maximum Operating Temperature :

+105°C

Stripping Length :

18mm ~ 20mm

Connectable conductor cross section solid-core :

2.5 - 16

Width :

12

Depth :

36.9

Material Flammability Rating :

UL94 V-0

Voltage - UL :

600V

Number of Circuits :

1

Product Status :

Active

Termination Method :

Clamp

Rated Voltage :

800V

Terminal - Width :

12.0mm

Color :

Blue

Voltage Rating :

800 V

Inflammability class of insulation material according to with UL94 :

V0

Length :

91

Rated current In :

76

Manufacturer :

Wago

Current Rating :

90A

Connectable conductor cross section multi-wired :

0.5 - 16

Package :

Box

Termination Style :

Push In, Spring

Current - IEC :

90 A

Approvals :

CSA, cURus

Type :

Standard Block

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Connectable conductor cross section fine-strand with cable end sleeve :

6 - 16

Series :

2116

Current - UL :

85 A

Number of Levels :

Single

RoHS :

yes

Rated Current :

76A

Wire Gauge or Range - mm² :

0.5-16mm²

Height :

91.5

Number of Positions :

2

Standards Met :

CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR

Voltage - IEC :

800V

Pitch :

12mm

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 25

Fuse Type :

-
