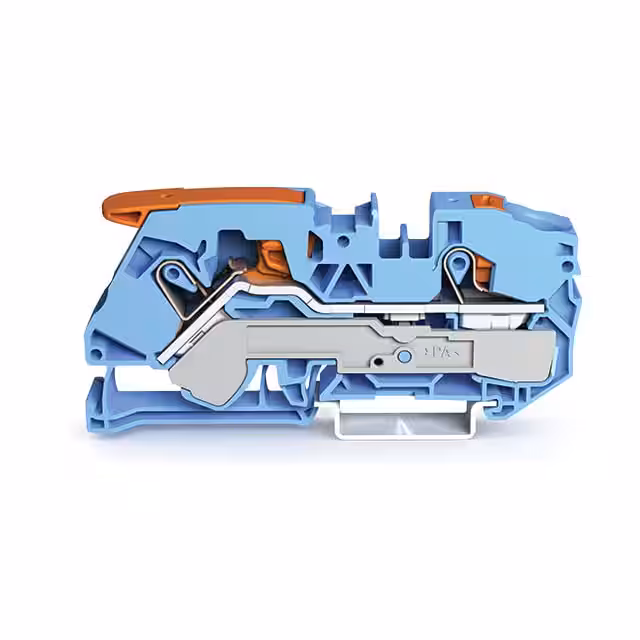

2116-5204

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Rated Voltage :

800V

Width :

12

Standards Met :

CCA, CSA, cURus, Ex, IECEx, KEMA/KEUR

Features :

-

Terminal - Width :

12.0mm

Current - IEC :

90 A

Stripping Length :

18mm ~ 20mm

Approvals :

CSA, cURus

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 25

Fuse Type :

-

RoHS :

yes

Disconnect Type :

-

Termination Method :

Clamp

Type :

Standard Block

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Product Status :

Active

Wire Gauge or Range - mm² :

0.5-16mm²

Number of Circuits :

1

Number of Levels :

Single

Pitch :

12mm

Maximum Operating Temperature :

+105°C

Height :

91.5

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Connectable conductor cross section fine-strand with cable end sleeve :

6 - 16

Number of Positions :

2

Length :

91

Rated Current :

76A

Color :

Blue

Termination Style :

Push In, Spring

Connectable conductor cross section multi-wired :

0.5 - 16

Current - UL :

85 A

Package :

Box

Material Flammability Rating :

UL94 V-0

Voltage - UL :

600V

Inflammability class of insulation material according to with UL94 :

V0

Mounting Type :

DIN Rail

Series :

2116

Voltage Rating :

800 V

Reach Compliance Code :

Compliant

Minimum Operating Temperature :

-35°C

Depth :

36.9

Connectable conductor cross section solid-core :

2.5 - 16

Voltage - IEC :

800V

Wire Gauge or Range - AWG :

6-20 AWG

Rated current In :

76

Current Rating :

90A
