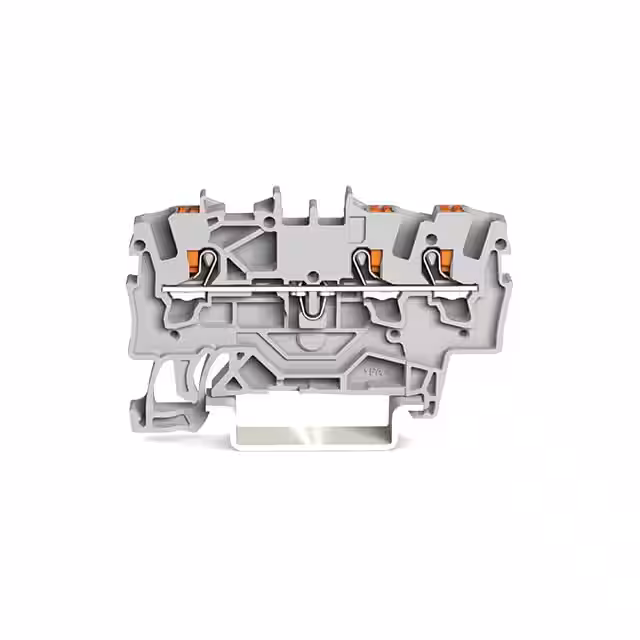

2201-1301

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Mounting Type :

DIN Rail

Manufacturer part # :

2201-1301

Wire Gauge or Range - AWG :

14-22 AWG

Color :

Gray

RoHS :

Compliant

Number of Ways :

3

Connectable conductor cross section solid-core :

0.5 - 2.5

Material Flammability Rating :

UL94 V-0

Mount :

Panel

AWG (min.) :

22

Inflammability class of insulation material according to with UL94 :

V0

Width :

4.20mm

Industrial packaging :

yes

Cross section (inflexible) (max.) :

2.50mm²

Fuse Type :

-

Current - IEC :

24 A

Height :

32.90mm

Cross section (inflexible) (min.) :

0.25mm²

Series :

2201

Manufacturer :

Wago

Package :

Box

Rated current In :

18

Pins per row :

2

Type :

Standard Block

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 1.5

Rated Voltage :

800V

Nominal voltage :

800V

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Terminal - Width :

4.2mm

Connection :

Push-in connector

Min. stripping length :

9mm

Number of Positions :

3

Disconnect Type :

-

Wire Gauge or Range - mm² :

0.25-2.5mm²

Cross section (flexible) (min.) :

0.25mm²

Nominal current :

18A

Wire Size :

22 → 14 AWG

Breaker Type :

Magnetic (Hydraulic Delay)

Connectable conductor cross section multi-wired :

0.25 - 1.5

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 2.5

Rated Current :

18A

Depth :

32.9

Number of Circuits :

1

Stripping Length :

9mm ~ 11mm

Number of Levels :

1

Current Rating :

10 A

Radiation Hardening :

No

Current - UL :

15 A

Cross section (flexible) (max.) :

1.50mm²

Approvals :

CSA, cURus

Content :

100pc(s)

Features :

+ latchkey,+ CAGE CLAMP®

Voltage - IEC :

800V

Dim :

(L x W x H) 59.20 x 4.20 x 32.90 mm

Product Status :

Active

Termination Style :

Push In, Spring

Length :

59.20mm

Termination Method :

Push In

Clamp width :

4.20mm

Voltage - UL :

600V

Number of Poles :

2

No. of rows :

1

Stripping length (max.) :

11mm

Nominal current - rounded value :

18A

AWG max. :

14
