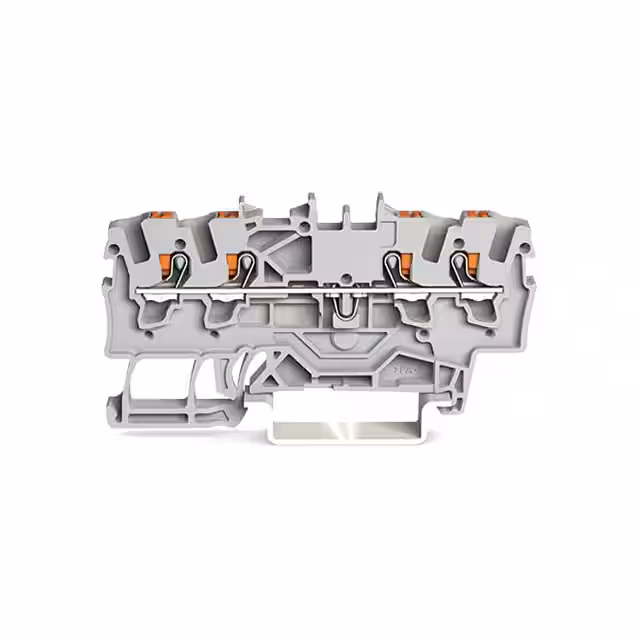

2201-1401

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Nominal voltage :

800V

Rated Voltage :

800V

Stripping length (max.) :

11mm

Min. stripping length :

9mm

Disconnect Type :

-

Length :

69.90mm

Approvals :

CSA, cURus

Height :

32.90mm

Package :

Box

Nominal current :

18A

Connectable conductor cross section multi-wired :

0.25 - 1.5

Mounting Type :

DIN Rail

Current - UL :

15 A

Number of Circuits :

1

Voltage - IEC :

800V

Series :

TOPJOB®S

Dim :

(L x W x H) 69.90 x 4.20 x 32.90 mm

Clamp width :

4.20mm

Wire Gauge or Range - mm² :

0.25-2.5mm²

Cross section (inflexible) (max.) :

2.50mm²

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 2.5

Industrial packaging :

yes

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Product Status :

Active

Current - IEC :

24 A

Termination Style :

Push In, Spring

Manufacturer part # :

2201-1401

Voltage - UL :

600V

Features :

+ latchkey,+ CAGE CLAMP®

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 1.5

Connection :

Push-in connector

Connectable conductor cross section solid-core :

0.5 - 2.5

Depth :

32.9

Fuse Type :

-

Nominal current - rounded value :

18A

AWG max. :

14

Material Flammability Rating :

UL94 V-0

Cross section (flexible) (max.) :

1.50mm²

Terminal - Width :

4.2mm

Cross section (flexible) (min.) :

0.25mm²

Number of Positions :

4

Wire Gauge or Range - AWG :

14-22 AWG

Inflammability class of insulation material according to with UL94 :

V0

RoHS :

yes

No. of rows :

1

Rated Current :

18A

Cross section (inflexible) (min.) :

0.25mm²

Width :

4.20mm

Type :

Standard Block

Color :

Gray

Pins per row :

2

Rated current In :

18

Stripping Length :

9mm ~ 11mm

Number of Levels :

1

AWG (min.) :

22

Content :

100pc(s)

Manufacturer :

Wago
