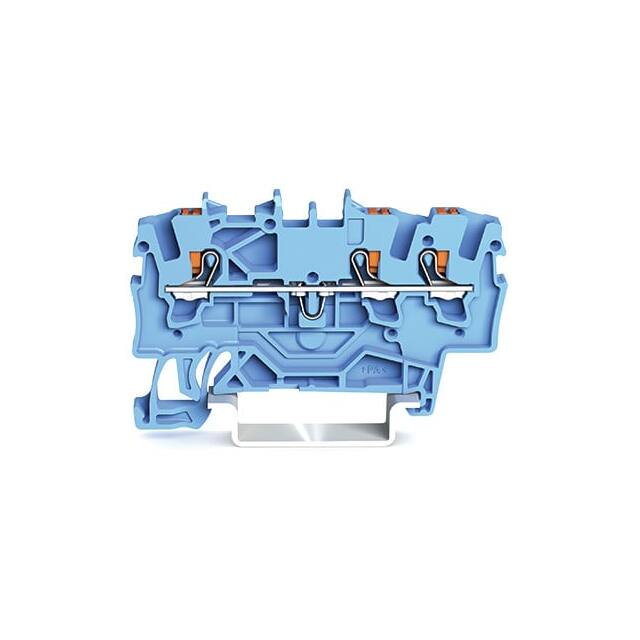

2201-1304

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connectable conductor cross section multi-wired :

0.25 - 1.5

Voltage - UL :

600V

Termination Style :

Push In, Spring

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section solid-core :

0.5 - 2.5

Content :

100pc(s)

No. of rows :

1

Other Names :

YDTS20H25-02DB0000

Wire Size :

22 → 14 AWG

Cross section (inflexible) (min.) :

0.25mm²

Rated current In :

18

Material Flammability Rating :

UL94 V-0

Number of Ways :

3

Color :

Blue

Width :

4.20mm

Cross section (flexible) (min.) :

0.25mm²

Dim :

(L x W x H) 59.20 x 4.20 x 32.90 mm

Stripping Length :

9mm ~ 11mm

Rated Voltage :

800V

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 1.5

Mounting Type :

DIN Rail

Nominal voltage :

800V

Number of Circuits :

1

Approvals :

CSA, cURus

Min. stripping length :

9mm

Stripping length (max.) :

11mm

AWG (min.) :

22

Disconnect Type :

-

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Length :

59.20mm

Nominal current - rounded value :

18A

Pins per row :

2

Current - UL :

15 A

Cross section (flexible) (max.) :

1.50mm²

Current - IEC :

24 A

Features :

+ latchkey,+ CAGE CLAMP®

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 2.5

Manufacturer :

Wago

Series :

*

RoHS :

yes

Number of Levels :

1

Nominal current :

18A

Type :

WAGO GmbH and Co. KG

Industrial packaging :

yes

Rated Current :

18A

Product Status :

Active

Manufacturer part # :

2201-1304

Voltage - IEC :

800V

Wire Gauge or Range - mm² :

0.25-2.5mm²

Package :

Box

Depth :

32.9

Number of Positions :

3

Current Rating :

18A

Clamp width :

4.20mm

Terminal - Width :

4.2mm

Cross section (inflexible) (max.) :

2.50mm²

Termination Method :

Push In

Wire Gauge or Range - AWG :

14-22 AWG

AWG max. :

14

Connection :

Push-in connector

Fuse Type :

-

Height :

32.90mm
