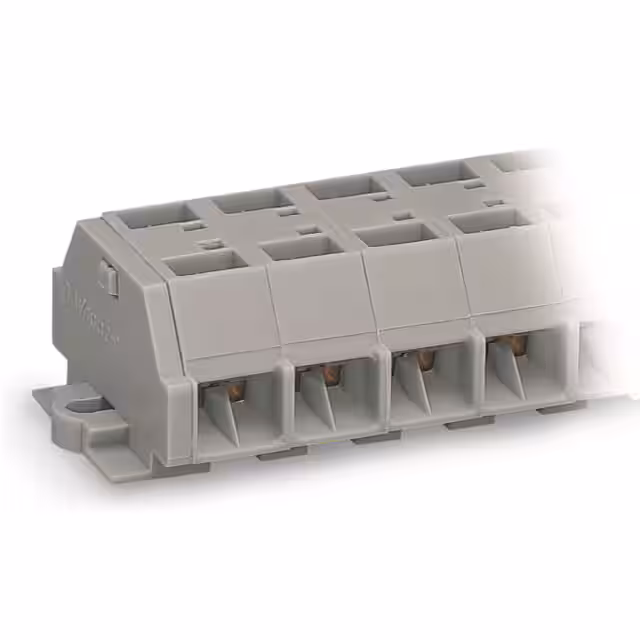

261-208

Manufacturer :

WAGO

Product Category :

Specialized

Cross section (inflexible) (max.) :

2.50mm²

Wire Gauge or Range - mm² :

0.08-2.5mm²

Number of Positions :

32

Manufacturer part # :

261-208

Nominal current - rounded value :

24A

Clamp width :

10mm

RoHS :

yes

Voltage - IEC :

500 V

Wire Gauge or Range - AWG :

14-28 AWG

Material Flammability Rating :

UL94 V-0

Connectable conductor cross section solid-core :

0.08 - 2.5

Width :

94.50mm

Connection :

Pull spring

Connection Type :

Spring Clamp

Package :

Box

Height :

18mm

Dim :

(W x H) 94.50 mm x 18 mm

Terminal - Width :

94.1mm

Cross section (flexible) (max.) :

2.50mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

No. of rows :

8

Industrial packaging :

yes

Termination Style :

Push In, Spring

Current - IEC :

24 A

Cross section (inflexible) (min.) :

0.08mm²

AWG max. :

14

Operating Temperature :

-

Configuration :

L

Cross section (flexible) (min.) :

0.08mm²

Series :

-

Rated current In :

24

Approvals :

CSA, UR

Product Status :

Active

Manufacturer :

Wago

Depth :

18.1

Contamination level :

3

Content :

50pc(s)

Type :

261-208

Number of Levels :

1

Connectable conductor cross section multi-wired :

0.08 - 2.5

Number of Poles :

8

Stripping Length :

8mm ~ 9mm

Pins per row :

4

Features :

+ sleeve

Height (Max) :

0.713 (18.11mm)

Mounting Type :

Surface Mount

Transparent :

No

AWG (min.) :

28

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Stripping length (max.) :

9mm

Housing Color :

Gray

Length :

28

Color :

Gray

Nominal voltage :

500V

Min. stripping length :

8mm

Inflammability class of insulation material according to with UL94 :

V0

Nominal current :

24A
