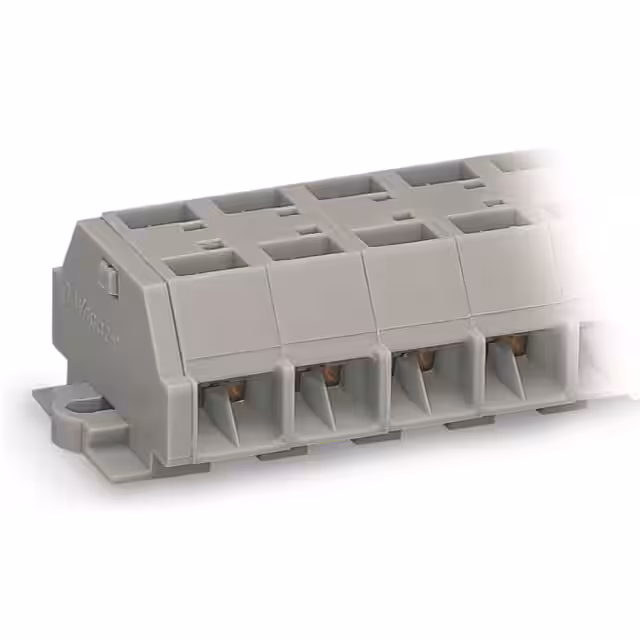

261-252

Manufacturer :

WAGO

Product Category :

Specialized

No. of rows :

2

Terminal - Width :

23.0mm

Wire Gauge or Range - AWG :

14-28 AWG

EU RoHS :

Compliant

Weight :

8.888g

Number of Rows :

2

Stripping length (max.) :

9mm

Transparent :

No

Manufacturer part # :

261-252

Stripping Length :

8mm ~ 9mm

Configuration :

L

Product Status :

Active

Min. stripping length :

8mm

Number of Positions :

8

RoHS :

Non-Compliant

AWG (min.) :

28

Nominal voltage :

500V

Connectable conductor cross section multi-wired :

0.08 - 2.5

Cross section (inflexible) (min.) :

0.08mm²

Height (Max) :

0.713 (18.11mm)

Content :

100pc(s)

Type :

261-252

Rated current In :

24

Dim :

(W x H) 24.40 mm x 18 mm

ECCN (US) :

EAR99

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Package :

Box

Housing Color :

Gray

Cross section (flexible) (max.) :

2.50mm²

Clamp width :

10mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

PPAP :

No

Flammability Rating :

UL94 V-0

AWG max. :

14

Height :

18mm

Material Flammability Rating :

UL94 V-0

Width :

24.40mm

Number of Levels :

1

Nominal current :

24A

Cross section (flexible) (min.) :

0.08mm²

Operating Temperature :

-

Cross section (inflexible) (max.) :

2.50mm²

Features :

+ latch lock base

Current Rating :

24 A

Wire Gauge or Range - mm² :

0.08-2.5mm²

Connection :

Pull spring

Current - IEC :

24 A

Inflammability class of insulation material according to with UL94 :

V0

Pins per row :

4

Mounting Type :

Direct Mount

Nominal current - rounded value :

24A

Number of Pins :

8

Depth :

18.1

Automotive :

No

Connectable conductor cross section solid-core :

0.08 - 2.5

Voltage - IEC :

500 V

Series :

-

Length :

28

Termination Style :

Push In, Spring

Color :

Grey

Industrial packaging :

yes
